NEXRAD Level 2#
[1]:
import xarray as xr
import xradar as xd
import cmweather
from open_radar_data import DATASETS
Download#
Fetching NEXRAD Level2 radar data file from open-radar-data repository.
[2]:
filename = DATASETS.fetch("KLBB20160601_150025_V06")
Downloading file 'KLBB20160601_150025_V06' from 'https://github.com/openradar/open-radar-data/raw/main/data/KLBB20160601_150025_V06' to '/home/docs/.cache/open-radar-data'.
xr.open_dataset#
Making use of the xarray nexradlevel2 backend. We also need to provide the group. Note, that we are using CfRadial2 group access pattern.
[3]:
ds = xr.open_dataset(filename, group="sweep_0", engine="nexradlevel2")
display(ds)
<xarray.Dataset> Size: 42MB
Dimensions: (azimuth: 720, range: 1832)
Coordinates:
elevation (azimuth) float64 6kB ...
time (azimuth) datetime64[ns] 6kB ...
* range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
longitude float64 8B ...
latitude float64 8B ...
altitude int64 8B ...
* azimuth (azimuth) float64 6kB 0.2582 0.7663 1.255 ... 359.2 359.8
Data variables:
DBZH (azimuth, range) float64 11MB ...
ZDR (azimuth, range) float64 11MB ...
PHIDP (azimuth, range) float64 11MB ...
RHOHV (azimuth, range) float64 11MB ...
sweep_mode <U20 80B ...
sweep_number int64 8B ...
prt_mode <U7 28B ...
follow_mode <U7 28B ...
sweep_fixed_angle float64 8B ...
Attributes:

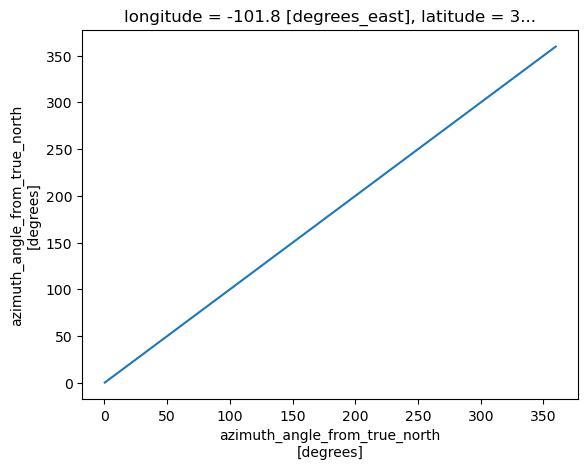

instrument_name: KLBBPlot Time vs. Azimuth#
[4]:
ds.azimuth.plot()
[4]:
[<matplotlib.lines.Line2D at 0x7f6a7e2a05d0>]

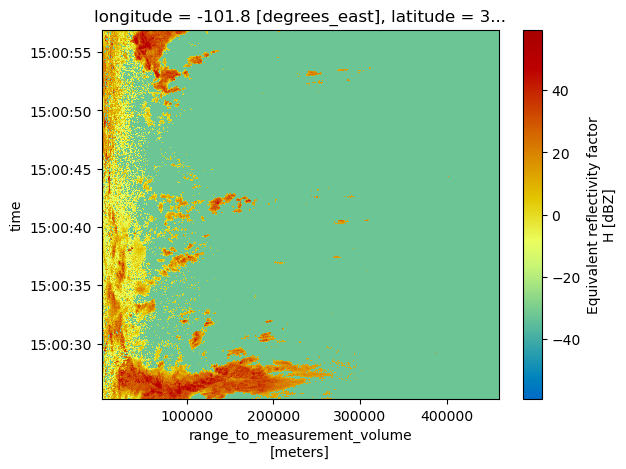

Plot Range vs. Time#
We need to sort by time and specify the y-coordinate.
[5]:
ds.DBZH.sortby("time").plot(y="time", cmap="HomeyerRainbow")
[5]:
<matplotlib.collections.QuadMesh at 0x7f6a76183310>

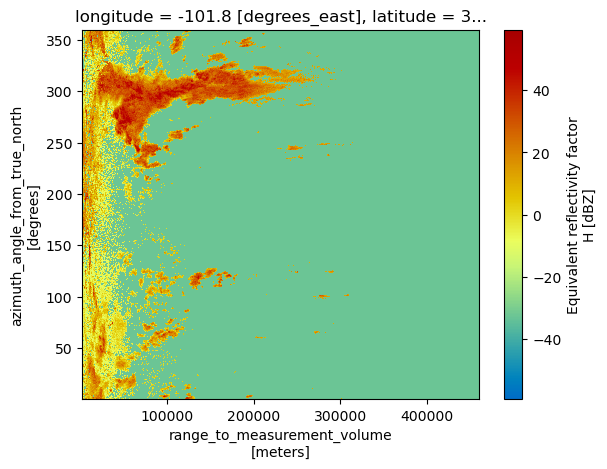

Plot Range vs. Azimuth#
[6]:
ds.DBZH.plot(cmap="HomeyerRainbow")
[6]:
<matplotlib.collections.QuadMesh at 0x7f6a76243f90>
backend_kwargs#
Beside first_dim there are several additional backend_kwargs for the nexradlevel2 backend, which handle different aspects of angle alignment. This comes into play, when azimuth and/or elevation arrays are not evenly spacend and other issues.
[7]:
help(xd.io.NexradLevel2BackendEntrypoint)
Help on class NexradLevel2BackendEntrypoint in module xradar.io.backends.nexrad_level2:
class NexradLevel2BackendEntrypoint(xarray.backends.common.BackendEntrypoint)
| Xarray BackendEntrypoint for NEXRAD Level2 Data
|
| Method resolution order:
| NexradLevel2BackendEntrypoint
| xarray.backends.common.BackendEntrypoint
| builtins.object
|
| Methods defined here:
|
| open_dataset(self, filename_or_obj, *, mask_and_scale=True, decode_times=True, concat_characters=True, decode_coords=True, drop_variables=None, use_cftime=None, decode_timedelta=None, group=None, first_dim='auto', reindex_angle=False, fix_second_angle=False, site_coords=True, optional=True)
| Backend open_dataset method used by Xarray in :py:func:`~xarray.open_dataset`.
|
| ----------------------------------------------------------------------
| Data and other attributes defined here:
|
| __annotations__ = {}
|
| description = 'Open NEXRAD Level2 files in Xarray'
|
| open_dataset_parameters = ('filename_or_obj', 'mask_and_scale', 'decod...
|
| url = 'tbd'
|
| ----------------------------------------------------------------------
| Methods inherited from xarray.backends.common.BackendEntrypoint:
|
| __repr__(self) -> 'str'
| Return repr(self).
|
| guess_can_open(self, filename_or_obj: 'str | os.PathLike[Any] | BufferedIOBase | AbstractDataStore') -> 'bool'
| Backend open_dataset method used by Xarray in :py:func:`~xarray.open_dataset`.
|
| open_datatree(self, filename_or_obj: 'str | os.PathLike[Any] | BufferedIOBase | AbstractDataStore', **kwargs: 'Any') -> 'DataTree'
| Backend open_datatree method used by Xarray in :py:func:`~xarray.open_datatree`.
|
| ----------------------------------------------------------------------
| Data descriptors inherited from xarray.backends.common.BackendEntrypoint:
|
| __dict__
| dictionary for instance variables
|
| __weakref__
| list of weak references to the object
[8]:
ds = xr.open_dataset(filename, group="sweep_0", engine="nexradlevel2", first_dim="time")
display(ds)
<xarray.Dataset> Size: 42MB
Dimensions: (time: 720, range: 1832)
Coordinates:
elevation (time) float64 6kB ...
* time (time) datetime64[ns] 6kB 2016-06-02T15:00:25.232000 ....
* range (range) float32 7kB 2.125e+03 2.375e+03 ... 4.599e+05
longitude float64 8B ...
latitude float64 8B ...
altitude int64 8B ...
azimuth (time) float64 6kB ...
Data variables:
DBZH (time, range) float64 11MB ...
ZDR (time, range) float64 11MB ...
PHIDP (time, range) float64 11MB ...
RHOHV (time, range) float64 11MB ...
sweep_mode <U20 80B ...
sweep_number int64 8B ...
prt_mode <U7 28B ...
follow_mode <U7 28B ...
sweep_fixed_angle float64 8B ...
Attributes:
instrument_name: KLBBopen_nexradlevel2_datatree#
The same works analoguous with the datatree loader. But additionally we can provide a sweep string, number or list.
[9]:
help(xd.io.open_nexradlevel2_datatree)
Help on function open_nexradlevel2_datatree in module xradar.io.backends.nexrad_level2:
open_nexradlevel2_datatree(filename_or_obj, **kwargs)
Open NEXRAD Level2 dataset as :py:class:`datatree.DataTree`.
Parameters
----------
filename_or_obj : str, Path, file-like or DataStore
Strings and Path objects are interpreted as a path to a local or remote
radar file
Keyword Arguments
-----------------
sweep : int, list of int, optional
Sweep number(s) to extract, default to first sweep. If None, all sweeps are
extracted into a list.
first_dim : str
Can be ``time`` or ``auto`` first dimension. If set to ``auto``,
first dimension will be either ``azimuth`` or ``elevation`` depending on
type of sweep. Defaults to ``auto``.
reindex_angle : bool or dict
Defaults to False, no reindexing. Given dict should contain the kwargs to
reindex_angle. Only invoked if `decode_coord=True`.
fix_second_angle : bool
If True, fixes erroneous second angle data. Defaults to ``False``.
site_coords : bool
Attach radar site-coordinates to Dataset, defaults to ``True``.
kwargs : dict
Additional kwargs are fed to :py:func:`xarray.open_dataset`.
Returns
-------
dtree: datatree.DataTree
DataTree
[10]:
dtree = xd.io.open_nexradlevel2_datatree(filename, sweep=4)
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2016-06-02T15:02:34Z'
time_coverage_end <U20 80B '2016-06-02T15:03:06Z'
longitude float64 8B -101.8
altitude int64 8B 1029
latitude float64 8B 33.65
Attributes:
Conventions: None
instrument_name: KLBB
version: None
title: None
institution: None
references: None
source: None
history: None

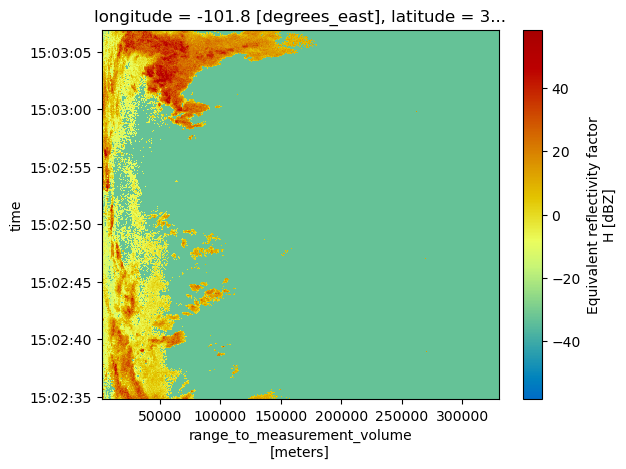

comment: im/exported using xradarPlot Sweep Range vs. Time#
[11]:
dtree["sweep_0"].ds.DBZH.sortby("time").plot(y="time", cmap="HomeyerRainbow")
[11]:
<matplotlib.collections.QuadMesh at 0x7f6a7f4b6710>

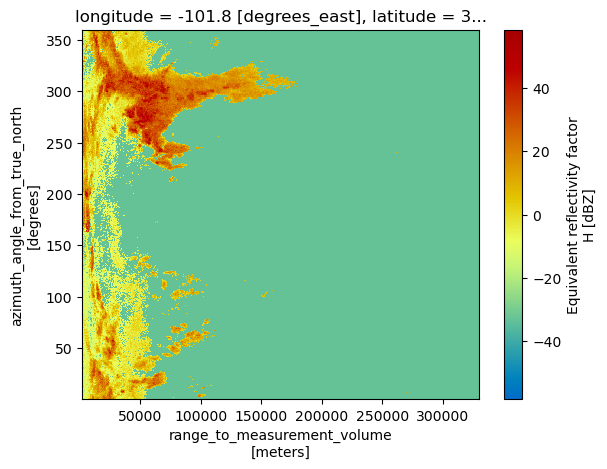

Plot Sweep Range vs. Azimuth#
[12]:
dtree["sweep_0"].ds.DBZH.plot(cmap="HomeyerRainbow")
[12]:
<matplotlib.collections.QuadMesh at 0x7f6a70d0c9d0>
[13]:
dtree = xd.io.open_nexradlevel2_datatree(filename, sweep="sweep_8")
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2016-06-02T15:04:48Z'
time_coverage_end <U20 80B '2016-06-02T15:05:13Z'
longitude float64 8B -101.8
altitude int64 8B 1029
latitude float64 8B 33.65
Attributes:
Conventions: None
instrument_name: KLBB
version: None
title: None
institution: None
references: None
source: None
history: None
comment: im/exported using xradar[14]:
dtree = xd.io.open_nexradlevel2_datatree(filename, sweep=[0, 1, 8])
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2016-06-02T15:00:25Z'
time_coverage_end <U20 80B '2016-06-02T15:05:13Z'
longitude float64 8B -101.8
altitude int64 8B 1029
latitude float64 8B 33.65
Attributes:
Conventions: None
instrument_name: KLBB
version: None
title: None
institution: None
references: None
source: None
history: None
comment: im/exported using xradar[15]:
dtree = xd.io.open_nexradlevel2_datatree(
filename, sweep=["sweep_1", "sweep_2", "sweep_8"]
)
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2016-06-02T15:00:57Z'
time_coverage_end <U20 80B '2016-06-02T15:05:13Z'
longitude float64 8B -101.8
altitude int64 8B 1029
latitude float64 8B 33.65
Attributes:
Conventions: None
instrument_name: KLBB
version: None
title: None
institution: None
references: None
source: None
history: None
comment: im/exported using xradar
