ODIM_H5

import xarray as xr
from open_radar_data import DATASETS

import xradar as xd

Download

Fetching ODIM_H5 radar data file from open-radar-data repository.

filename = DATASETS.fetch("71_20181220_060628.pvol.h5")

xr.open_dataset

Making use of the xarray odim backend. We also need to provide the group. We use CfRadial2 group access pattern.

ds = xr.open_dataset(filename, group="sweep_0", engine="odim")
display(ds)

<xarray.Dataset> Size: 40MB
Dimensions:            (azimuth: 360, range: 1200)
Coordinates:
    elevation          (azimuth) float64 3kB ...
    time               (azimuth) datetime64[ns] 3kB ...
  * range              (range) float32 5kB 125.0 375.0 ... 2.996e+05 2.999e+05
    longitude          float64 8B ...
    latitude           float64 8B ...
    altitude           float64 8B ...
  * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
Data variables: (12/17)
    DBZH               (azimuth, range) float64 3MB ...
    DBZH_CLEAN         (azimuth, range) float64 3MB ...
    VRADDH             (azimuth, range) float64 3MB ...
    VRADH              (azimuth, range) float64 3MB ...
    WRADH              (azimuth, range) float64 3MB ...
    TH                 (azimuth, range) float64 3MB ...
    ...                 ...
    CLASS              (azimuth, range) float32 2MB ...
    sweep_mode         <U20 80B ...
    sweep_number       int64 8B ...
    prt_mode           <U7 28B ...
    follow_mode        <U7 28B ...
    sweep_fixed_angle  float64 8B ...

xarray.Dataset

• Dimensions:
  • azimuth: 360
  • range: 1200
• Coordinates: (7)
  • elevation
    (azimuth)
    float64
    ...

    standard_name :

    ray_elevation_angle

    long_name :

    elevation_angle_from_horizontal_plane

    units :

    degrees

    axis :

    radial_elevation_coordinate

    [360 values with dtype=float64]

  • time
    (azimuth)
    datetime64[ns]
    ...

    standard_name :

    time

    [360 values with dtype=datetime64[ns]]

  • range
    (range)
    float32
    125.0 375.0 ... 2.996e+05 2.999e+05

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    meters_between_gates :

    250.0

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    125.0

    array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 2.99375e+05, 2.99625e+05,
           2.99875e+05], dtype=float32)

  • longitude
    ()
    float64
    ...

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    [1 values with dtype=float64]

  • latitude
    ()
    float64
    ...

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    [1 values with dtype=float64]

  • altitude
    ()
    float64
    ...

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    [1 values with dtype=float64]

  • azimuth
    (azimuth)
    float32
    0.5 1.5 2.5 ... 357.5 358.5 359.5

    standard_name :

    ray_azimuth_angle

    long_name :

    azimuth_angle_from_true_north

    units :

    degrees

    axis :

    radial_azimuth_coordinate

    array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

• Data variables: (17)
  • DBZH
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    units :

    dBZ

    [432000 values with dtype=float64]

  • DBZH_CLEAN
    (azimuth, range)
    float64
    ...

    _Undetect :

    1.0

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    units :

    dBZ

    [432000 values with dtype=float64]

  • VRADDH
    (azimuth, range)
    float64
    ...

    _Undetect :

    1.0

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    long_name :

    Radial velocity of scatterers away from instrument H

    units :

    meters per seconds

    [432000 values with dtype=float64]

  • VRADH
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    long_name :

    Radial velocity of scatterers away from instrument H

    units :

    meters per seconds

    [432000 values with dtype=float64]

  • WRADH
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_doppler_spectrum_width_h

    long_name :

    Doppler spectrum width H

    units :

    meters per seconds

    [432000 values with dtype=float64]

  • TH
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_linear_equivalent_reflectivity_factor_h

    long_name :

    Linear total power H (uncorrected reflectivity)

    units :

    unitless

    [432000 values with dtype=float64]

  • ZDR
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_differential_reflectivity_hv

    long_name :

    Log differential reflectivity H/V

    units :

    dB

    [432000 values with dtype=float64]

  • RHOHV
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_correlation_coefficient_hv

    long_name :

    Correlation coefficient HV

    units :

    unitless

    [432000 values with dtype=float64]

  • PHIDP
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_differential_phase_hv

    long_name :

    Differential phase HV

    units :

    degrees

    [432000 values with dtype=float64]

  • KDP
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_specific_differential_phase_hv

    long_name :

    Specific differential phase HV

    units :

    degrees per kilometer

    [432000 values with dtype=float64]

  • SNRH
    (azimuth, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    signal_noise_ratio_h

    long_name :

    Signal Noise Ratio H

    units :

    unitless

    [432000 values with dtype=float64]

  • CLASS
    (azimuth, range)
    float32
    ...

    _Undetect :

    -2.0

    [432000 values with dtype=float32]

  • sweep_mode
    ()
    <U20
    ...

    [1 values with dtype=<U20]

  • sweep_number
    ()
    int64
    ...

    [1 values with dtype=int64]

  • prt_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • follow_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • sweep_fixed_angle
    ()
    float64
    ...

    [1 values with dtype=float64]

• Indexes: (2)
  • range
    PandasIndex

    PandasIndex(Index([   125.0,    375.0,    625.0,    875.0,   1125.0,   1375.0,   1625.0,
             1875.0,   2125.0,   2375.0,
           ...
           297625.0, 297875.0, 298125.0, 298375.0, 298625.0, 298875.0, 299125.0,
           299375.0, 299625.0, 299875.0],
          dtype='float32', name='range', length=1200))

  • azimuth
    PandasIndex

    PandasIndex(Index([  0.5,   1.5,   2.5,   3.5,   4.5,   5.5,   6.5,   7.5,   8.5,   9.5,
           ...
           350.5, 351.5, 352.5, 353.5, 354.5, 355.5, 356.5, 357.5, 358.5, 359.5],
          dtype='float32', name='azimuth', length=360))

• Attributes: (0)

ds.sweep_fixed_angle.values

array(0.5)

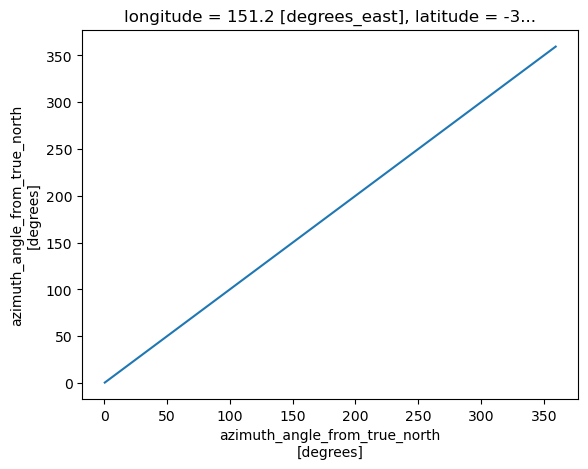

Plot Time vs. Azimuth

ds.azimuth.plot()

[<matplotlib.lines.Line2D at 0x7fda207e0c10>]

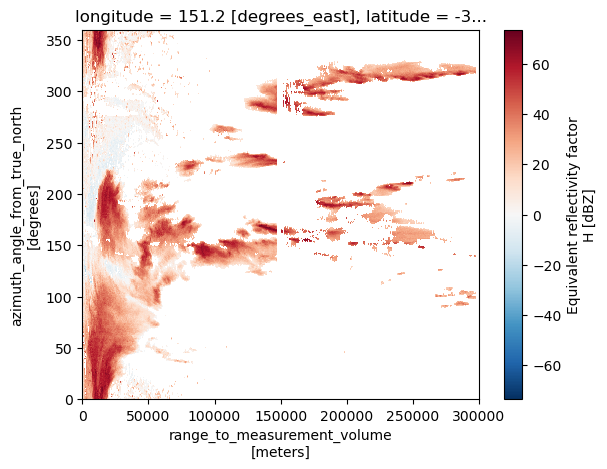

Plot Range vs. Time

ds.DBZH.plot()

<matplotlib.collections.QuadMesh at 0x7fda206f39d0>

Plot Range vs. Azimuth

We need to sort by azimuth and specify the y-coordinate.

ds.DBZH.sortby("azimuth").plot(y="azimuth")

<matplotlib.collections.QuadMesh at 0x7fda2067fdd0>

backend_kwargs

Beside first_dim there are several additional backend_kwargs for the odim backend, which handle different aspects of angle alignment. This comes into play, when azimuth and/or elevation arrays are not evenly spacend and other issues.

?xd.io.OdimBackendEntrypoint

ds = xr.open_dataset(filename, group="sweep_0", engine="odim", first_dim="time")
display(ds)

<xarray.Dataset> Size: 40MB
Dimensions:            (time: 360, range: 1200)
Coordinates:
    elevation          (time) float64 3kB ...
  * time               (time) datetime64[ns] 3kB 2018-12-20T06:06:28.04027776...
  * range              (range) float32 5kB 125.0 375.0 ... 2.996e+05 2.999e+05
    longitude          float64 8B ...
    latitude           float64 8B ...
    altitude           float64 8B ...
    azimuth            (time) float32 1kB ...
Data variables: (12/17)
    DBZH               (time, range) float64 3MB ...
    DBZH_CLEAN         (time, range) float64 3MB ...
    VRADDH             (time, range) float64 3MB ...
    VRADH              (time, range) float64 3MB ...
    WRADH              (time, range) float64 3MB ...
    TH                 (time, range) float64 3MB ...
    ...                 ...
    CLASS              (time, range) float32 2MB ...
    sweep_mode         <U20 80B ...
    sweep_number       int64 8B ...
    prt_mode           <U7 28B ...
    follow_mode        <U7 28B ...
    sweep_fixed_angle  float64 8B ...

xarray.Dataset

• Dimensions:
  • time: 360
  • range: 1200
• Coordinates: (7)
  • elevation
    (time)
    float64
    ...

    standard_name :

    ray_elevation_angle

    long_name :

    elevation_angle_from_horizontal_plane

    units :

    degrees

    axis :

    radial_elevation_coordinate

    [360 values with dtype=float64]

  • time
    (time)
    datetime64[ns]
    2018-12-20T06:06:28.040277760 .....

    standard_name :

    time

    array(['2018-12-20T06:06:28.040277760', '2018-12-20T06:06:28.120833280',
           '2018-12-20T06:06:28.201388544', ..., '2018-12-20T06:06:56.798569472',
           '2018-12-20T06:06:56.879124992', '2018-12-20T06:06:56.959680256'],
          dtype='datetime64[ns]')

  • range
    (range)
    float32
    125.0 375.0 ... 2.996e+05 2.999e+05

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    meters_between_gates :

    250.0

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    125.0

    array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 2.99375e+05, 2.99625e+05,
           2.99875e+05], dtype=float32)

  • longitude
    ()
    float64
    ...

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    [1 values with dtype=float64]

  • latitude
    ()
    float64
    ...

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    [1 values with dtype=float64]

  • altitude
    ()
    float64
    ...

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    [1 values with dtype=float64]

  • azimuth
    (time)
    float32
    ...

    standard_name :

    ray_azimuth_angle

    long_name :

    azimuth_angle_from_true_north

    units :

    degrees

    axis :

    radial_azimuth_coordinate

    [360 values with dtype=float32]

• Data variables: (17)
  • DBZH
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    units :

    dBZ

    [432000 values with dtype=float64]

  • DBZH_CLEAN
    (time, range)
    float64
    ...

    _Undetect :

    1.0

    standard_name :

    radar_equivalent_reflectivity_factor_h

    long_name :

    Equivalent reflectivity factor H

    units :

    dBZ

    [432000 values with dtype=float64]

  • VRADDH
    (time, range)
    float64
    ...

    _Undetect :

    1.0

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    long_name :

    Radial velocity of scatterers away from instrument H

    units :

    meters per seconds

    [432000 values with dtype=float64]

  • VRADH
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    long_name :

    Radial velocity of scatterers away from instrument H

    units :

    meters per seconds

    [432000 values with dtype=float64]

  • WRADH
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_doppler_spectrum_width_h

    long_name :

    Doppler spectrum width H

    units :

    meters per seconds

    [432000 values with dtype=float64]

  • TH
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_linear_equivalent_reflectivity_factor_h

    long_name :

    Linear total power H (uncorrected reflectivity)

    units :

    unitless

    [432000 values with dtype=float64]

  • ZDR
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_differential_reflectivity_hv

    long_name :

    Log differential reflectivity H/V

    units :

    dB

    [432000 values with dtype=float64]

  • RHOHV
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_correlation_coefficient_hv

    long_name :

    Correlation coefficient HV

    units :

    unitless

    [432000 values with dtype=float64]

  • PHIDP
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_differential_phase_hv

    long_name :

    Differential phase HV

    units :

    degrees

    [432000 values with dtype=float64]

  • KDP
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    radar_specific_differential_phase_hv

    long_name :

    Specific differential phase HV

    units :

    degrees per kilometer

    [432000 values with dtype=float64]

  • SNRH
    (time, range)
    float64
    ...

    _Undetect :

    0.0

    standard_name :

    signal_noise_ratio_h

    long_name :

    Signal Noise Ratio H

    units :

    unitless

    [432000 values with dtype=float64]

  • CLASS
    (time, range)
    float32
    ...

    _Undetect :

    -2.0

    [432000 values with dtype=float32]

  • sweep_mode
    ()
    <U20
    ...

    [1 values with dtype=<U20]

  • sweep_number
    ()
    int64
    ...

    [1 values with dtype=int64]

  • prt_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • follow_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • sweep_fixed_angle
    ()
    float64
    ...

    [1 values with dtype=float64]

• Indexes: (2)
  • time
    PandasIndex

    PandasIndex(DatetimeIndex(['2018-12-20 06:06:28.040277760',
                   '2018-12-20 06:06:28.120833280',
                   '2018-12-20 06:06:28.201388544',
                   '2018-12-20 06:06:28.281944064',
                   '2018-12-20 06:06:28.362499584',
                   '2018-12-20 06:06:28.443054848',
                   '2018-12-20 06:06:28.523610368',
                   '2018-12-20 06:06:28.604165888',
                   '2018-12-20 06:06:28.684721152',
                   '2018-12-20 06:06:28.765276672',
                   ...
                   '2018-12-20 06:06:56.234681344',
                   '2018-12-20 06:06:56.315236864',
                   '2018-12-20 06:06:56.395792128',
                   '2018-12-20 06:06:56.476347648',
                   '2018-12-20 06:06:56.556903168',
                   '2018-12-20 06:06:56.637458688',
                   '2018-12-20 06:06:56.718013952',
                   '2018-12-20 06:06:56.798569472',
                   '2018-12-20 06:06:56.879124992',
                   '2018-12-20 06:06:56.959680256'],
                  dtype='datetime64[ns]', name='time', length=360, freq=None))

  • range
    PandasIndex

    PandasIndex(Index([   125.0,    375.0,    625.0,    875.0,   1125.0,   1375.0,   1625.0,
             1875.0,   2125.0,   2375.0,
           ...
           297625.0, 297875.0, 298125.0, 298375.0, 298625.0, 298875.0, 299125.0,
           299375.0, 299625.0, 299875.0],
          dtype='float32', name='range', length=1200))

• Attributes: (0)

open_odim_datatree

The same works analoguous with the datatree loader. But additionally we can provide a sweep string, number or list.

?xd.io.open_odim_datatree

dtree = xd.io.open_odim_datatree(filename, sweep=8)
display(dtree)

<xarray.DatasetView> Size: 232B
Dimensions:              ()
Data variables:
    volume_number        int64 8B 0
    platform_type        <U5 20B 'fixed'
    instrument_type      <U5 20B 'radar'
    time_coverage_start  <U20 80B '2018-12-20T06:09:21Z'
    time_coverage_end    <U20 80B '2018-12-20T06:09:34Z'
    longitude            float64 8B 151.2
    altitude             float64 8B 195.0
    latitude             float64 8B -33.7
Attributes:
    Conventions:      ODIM_H5/V2_2
    instrument_name:  None
    version:          None
    title:            None
    institution:      None
    references:       None
    source:           None
    history:          None
    comment:          im/exported using xradar

datatree.DataTree

• Groups: (1)
  <xarray.DatasetView> Size: 20MB
  Dimensions:            (azimuth: 360, range: 590)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:09:30.39167...
    * range              (range) float32 2kB 125.0 375.0 ... 1.471e+05 1.474e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 2MB ...
      DBZH_CLEAN         (azimuth, range) float64 2MB ...
      VRADDH             (azimuth, range) float64 2MB ...
      VRADH              (azimuth, range) float64 2MB ...
      WRADH              (azimuth, range) float64 2MB ...
      TH                 (azimuth, range) float64 2MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 850kB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_0

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 590
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:09:30.391676928 .....

      standard_name :

      time

      array(['2018-12-20T06:09:30.391676928', '2018-12-20T06:09:30.430565888',
             '2018-12-20T06:09:30.469454848', ..., '2018-12-20T06:09:30.275010048',
             '2018-12-20T06:09:30.313899008', '2018-12-20T06:09:30.352787968'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 1.471e+05 1.474e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 1.46875e+05, 1.47125e+05,
             1.47375e+05], dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [212400 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [212400 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [212400 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [212400 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [212400 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [212400 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [212400 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [212400 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [212400 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

• Dimensions:
• Coordinates: (0)
• Data variables: (8)
  • volume_number
    ()
    int64
    0

    array(0)

  • platform_type
    ()
    <U5
    'fixed'

    array('fixed', dtype='<U5')

  • instrument_type
    ()
    <U5
    'radar'

    array('radar', dtype='<U5')

  • time_coverage_start
    ()
    <U20
    '2018-12-20T06:09:21Z'

    array('2018-12-20T06:09:21Z', dtype='<U20')

  • time_coverage_end
    ()
    <U20
    '2018-12-20T06:09:34Z'

    array('2018-12-20T06:09:34Z', dtype='<U20')

  • longitude
    ()
    float64
    151.2

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    array(151.20899963)

  • altitude
    ()
    float64
    195.0

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    array(195.)

  • latitude
    ()
    float64
    -33.7

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    array(-33.70080185)

• Attributes: (9)

  Conventions :

  ODIM_H5/V2_2

  instrument_name :

  None

  version :

  None

  title :

  None

  institution :

  None

  references :

  None

  source :

  None

  history :

  None

  comment :

  im/exported using xradar

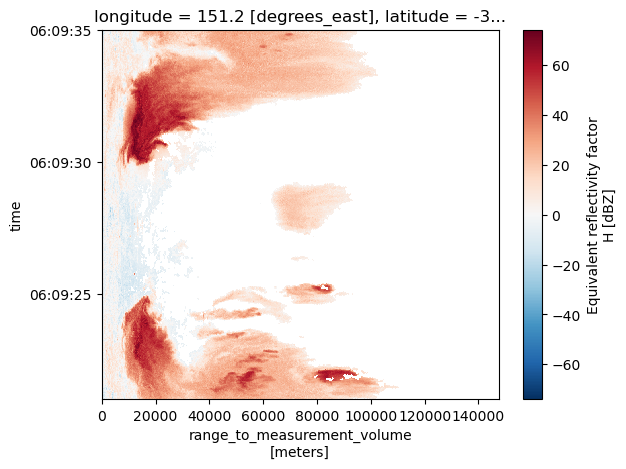

Plot Sweep Range vs. Time

dtree["sweep_0"].ds.DBZH.sortby("time").plot(y="time")

<matplotlib.collections.QuadMesh at 0x7fda1630b390>

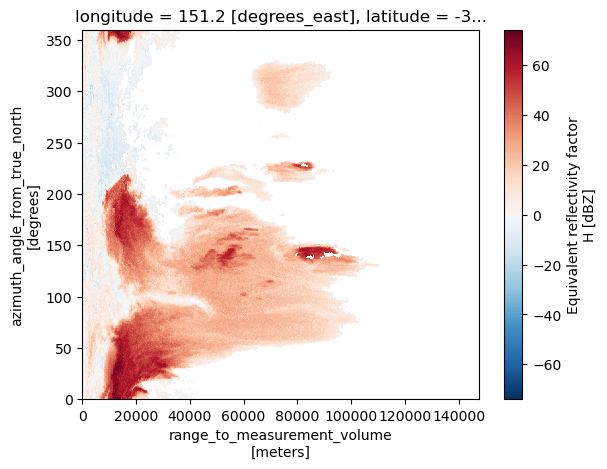

Plot Sweep Range vs. Azimuth

dtree["sweep_0"].ds.DBZH.plot()

<matplotlib.collections.QuadMesh at 0x7fda16203410>

dtree = xd.io.open_odim_datatree(filename, sweep="sweep_8")
display(dtree)

<xarray.DatasetView> Size: 232B
Dimensions:              ()
Data variables:
    volume_number        int64 8B 0
    platform_type        <U5 20B 'fixed'
    instrument_type      <U5 20B 'radar'
    time_coverage_start  <U20 80B '2018-12-20T06:09:21Z'
    time_coverage_end    <U20 80B '2018-12-20T06:09:34Z'
    longitude            float64 8B 151.2
    altitude             float64 8B 195.0
    latitude             float64 8B -33.7
Attributes:
    Conventions:      ODIM_H5/V2_2
    instrument_name:  None
    version:          None
    title:            None
    institution:      None
    references:       None
    source:           None
    history:          None
    comment:          im/exported using xradar

datatree.DataTree

• Groups: (1)
  <xarray.DatasetView> Size: 20MB
  Dimensions:            (azimuth: 360, range: 590)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:09:30.39167...
    * range              (range) float32 2kB 125.0 375.0 ... 1.471e+05 1.474e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 2MB ...
      DBZH_CLEAN         (azimuth, range) float64 2MB ...
      VRADDH             (azimuth, range) float64 2MB ...
      VRADH              (azimuth, range) float64 2MB ...
      WRADH              (azimuth, range) float64 2MB ...
      TH                 (azimuth, range) float64 2MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 850kB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_0

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 590
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:09:30.391676928 .....

      standard_name :

      time

      array(['2018-12-20T06:09:30.391676928', '2018-12-20T06:09:30.430565888',
             '2018-12-20T06:09:30.469454848', ..., '2018-12-20T06:09:30.275010048',
             '2018-12-20T06:09:30.313899008', '2018-12-20T06:09:30.352787968'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 1.471e+05 1.474e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 1.46875e+05, 1.47125e+05,
             1.47375e+05], dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [212400 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [212400 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [212400 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [212400 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [212400 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [212400 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [212400 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [212400 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [212400 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

• Dimensions:
• Coordinates: (0)
• Data variables: (8)
  • volume_number
    ()
    int64
    0

    array(0)

  • platform_type
    ()
    <U5
    'fixed'

    array('fixed', dtype='<U5')

  • instrument_type
    ()
    <U5
    'radar'

    array('radar', dtype='<U5')

  • time_coverage_start
    ()
    <U20
    '2018-12-20T06:09:21Z'

    array('2018-12-20T06:09:21Z', dtype='<U20')

  • time_coverage_end
    ()
    <U20
    '2018-12-20T06:09:34Z'

    array('2018-12-20T06:09:34Z', dtype='<U20')

  • longitude
    ()
    float64
    151.2

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    array(151.20899963)

  • altitude
    ()
    float64
    195.0

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    array(195.)

  • latitude
    ()
    float64
    -33.7

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    array(-33.70080185)

• Attributes: (9)

  Conventions :

  ODIM_H5/V2_2

  instrument_name :

  None

  version :

  None

  title :

  None

  institution :

  None

  references :

  None

  source :

  None

  history :

  None

  comment :

  im/exported using xradar

dtree = xd.io.open_odim_datatree(filename, sweep=[0, 1, 8])
display(dtree)

<xarray.DatasetView> Size: 232B
Dimensions:              ()
Data variables:
    volume_number        int64 8B 0
    platform_type        <U5 20B 'fixed'
    instrument_type      <U5 20B 'radar'
    time_coverage_start  <U20 80B '2018-12-20T06:06:59Z'
    time_coverage_end    <U20 80B '2018-12-20T06:09:48Z'
    longitude            float64 8B 151.2
    altitude             float64 8B 195.0
    latitude             float64 8B -33.7
Attributes:
    Conventions:      ODIM_H5/V2_2
    instrument_name:  None
    version:          None
    title:            None
    institution:      None
    references:       None
    source:           None
    history:          None
    comment:          im/exported using xradar

datatree.DataTree

• Groups: (3)
  <xarray.DatasetView> Size: 40MB
  Dimensions:            (azimuth: 360, range: 1200)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:07:19.82358...
    * range              (range) float32 5kB 125.0 375.0 ... 2.996e+05 2.999e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 3MB ...
      DBZH_CLEAN         (azimuth, range) float64 3MB ...
      VRADDH             (azimuth, range) float64 3MB ...
      VRADH              (azimuth, range) float64 3MB ...
      WRADH              (azimuth, range) float64 3MB ...
      TH                 (azimuth, range) float64 3MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 2MB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_0

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 1200
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:07:19.823580928 .....

      standard_name :

      time

      array(['2018-12-20T06:07:19.823580928', '2018-12-20T06:07:19.904136448',
             '2018-12-20T06:07:19.984691968', ..., '2018-12-20T06:07:19.581914624',
             '2018-12-20T06:07:19.662470144', '2018-12-20T06:07:19.743025664'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 2.996e+05 2.999e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 2.99375e+05, 2.99625e+05,
             2.99875e+05], dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [432000 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [432000 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [432000 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [432000 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [432000 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [432000 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [432000 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

  <xarray.DatasetView> Size: 40MB
  Dimensions:            (azimuth: 360, range: 1200)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:07:42.68472...
    * range              (range) float32 5kB 125.0 375.0 ... 2.996e+05 2.999e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 3MB ...
      DBZH_CLEAN         (azimuth, range) float64 3MB ...
      VRADDH             (azimuth, range) float64 3MB ...
      VRADH              (azimuth, range) float64 3MB ...
      WRADH              (azimuth, range) float64 3MB ...
      TH                 (azimuth, range) float64 3MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 2MB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_1

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 1200
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:07:42.684720384 .....

      standard_name :

      time

      array(['2018-12-20T06:07:42.684720384', '2018-12-20T06:07:42.737498112',
             '2018-12-20T06:07:42.790275840', ..., '2018-12-20T06:07:42.526386944',
             '2018-12-20T06:07:42.579164672', '2018-12-20T06:07:42.631942400'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 2.996e+05 2.999e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 2.99375e+05, 2.99625e+05,
             2.99875e+05], dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [432000 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [432000 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [432000 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [432000 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [432000 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [432000 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [432000 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

  <xarray.DatasetView> Size: 16MB
  Dimensions:            (azimuth: 360, range: 480)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:09:43.54582...
    * range              (range) float32 2kB 125.0 375.0 ... 1.196e+05 1.199e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 1MB ...
      DBZH_CLEAN         (azimuth, range) float64 1MB ...
      VRADDH             (azimuth, range) float64 1MB ...
      VRADH              (azimuth, range) float64 1MB ...
      WRADH              (azimuth, range) float64 1MB ...
      TH                 (azimuth, range) float64 1MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 691kB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_2

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 480
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:09:43.545820928 .....

      standard_name :

      time

      array(['2018-12-20T06:09:43.545820928', '2018-12-20T06:09:43.576376320',
             '2018-12-20T06:09:43.606931968', ..., '2018-12-20T06:09:43.454154496',
             '2018-12-20T06:09:43.484709888', '2018-12-20T06:09:43.515265536'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 1.196e+05 1.199e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([   125.,    375.,    625., ..., 119375., 119625., 119875.],
            dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [172800 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [172800 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [172800 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [172800 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [172800 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [172800 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [172800 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [172800 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [172800 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [172800 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [172800 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [172800 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

• Dimensions:
• Coordinates: (0)
• Data variables: (8)
  • volume_number
    ()
    int64
    0

    array(0)

  • platform_type
    ()
    <U5
    'fixed'

    array('fixed', dtype='<U5')

  • instrument_type
    ()
    <U5
    'radar'

    array('radar', dtype='<U5')

  • time_coverage_start
    ()
    <U20
    '2018-12-20T06:06:59Z'

    array('2018-12-20T06:06:59Z', dtype='<U20')

  • time_coverage_end
    ()
    <U20
    '2018-12-20T06:09:48Z'

    array('2018-12-20T06:09:48Z', dtype='<U20')

  • longitude
    ()
    float64
    151.2

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    array(151.20899963)

  • altitude
    ()
    float64
    195.0

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    array(195.)

  • latitude
    ()
    float64
    -33.7

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    array(-33.70080185)

• Attributes: (9)

  Conventions :

  ODIM_H5/V2_2

  instrument_name :

  None

  version :

  None

  title :

  None

  institution :

  None

  references :

  None

  source :

  None

  history :

  None

  comment :

  im/exported using xradar

dtree = xd.io.open_odim_datatree(filename, sweep=["sweep_0", "sweep_1", "sweep_8"])
display(dtree)

<xarray.DatasetView> Size: 232B
Dimensions:              ()
Data variables:
    volume_number        int64 8B 0
    platform_type        <U5 20B 'fixed'
    instrument_type      <U5 20B 'radar'
    time_coverage_start  <U20 80B '2018-12-20T06:06:28Z'
    time_coverage_end    <U20 80B '2018-12-20T06:09:34Z'
    longitude            float64 8B 151.2
    altitude             float64 8B 195.0
    latitude             float64 8B -33.7
Attributes:
    Conventions:      ODIM_H5/V2_2
    instrument_name:  None
    version:          None
    title:            None
    institution:      None
    references:       None
    source:           None
    history:          None
    comment:          im/exported using xradar

datatree.DataTree

• Groups: (3)
  <xarray.DatasetView> Size: 40MB
  Dimensions:            (azimuth: 360, range: 1200)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:06:50.11246...
    * range              (range) float32 5kB 125.0 375.0 ... 2.996e+05 2.999e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 3MB ...
      DBZH_CLEAN         (azimuth, range) float64 3MB ...
      VRADDH             (azimuth, range) float64 3MB ...
      VRADH              (azimuth, range) float64 3MB ...
      WRADH              (azimuth, range) float64 3MB ...
      TH                 (azimuth, range) float64 3MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 2MB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_0

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 1200
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:06:50.112467968 .....

      standard_name :

      time

      array(['2018-12-20T06:06:50.112467968', '2018-12-20T06:06:50.193023488',
             '2018-12-20T06:06:50.273579008', ..., '2018-12-20T06:06:49.870801664',
             '2018-12-20T06:06:49.951357184', '2018-12-20T06:06:50.031912448'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 2.996e+05 2.999e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 2.99375e+05, 2.99625e+05,
             2.99875e+05], dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [432000 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [432000 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [432000 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [432000 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [432000 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [432000 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [432000 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

  <xarray.DatasetView> Size: 40MB
  Dimensions:            (azimuth: 360, range: 1200)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:07:19.82358...
    * range              (range) float32 5kB 125.0 375.0 ... 2.996e+05 2.999e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 3MB ...
      DBZH_CLEAN         (azimuth, range) float64 3MB ...
      VRADDH             (azimuth, range) float64 3MB ...
      VRADH              (azimuth, range) float64 3MB ...
      WRADH              (azimuth, range) float64 3MB ...
      TH                 (azimuth, range) float64 3MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 2MB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_1

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 1200
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:07:19.823580928 .....

      standard_name :

      time

      array(['2018-12-20T06:07:19.823580928', '2018-12-20T06:07:19.904136448',
             '2018-12-20T06:07:19.984691968', ..., '2018-12-20T06:07:19.581914624',
             '2018-12-20T06:07:19.662470144', '2018-12-20T06:07:19.743025664'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 2.996e+05 2.999e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 2.99375e+05, 2.99625e+05,
             2.99875e+05], dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [432000 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [432000 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [432000 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [432000 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [432000 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [432000 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [432000 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [432000 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [432000 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

  <xarray.DatasetView> Size: 20MB
  Dimensions:            (azimuth: 360, range: 590)
  Coordinates:
      elevation          (azimuth) float64 3kB ...
      time               (azimuth) datetime64[ns] 3kB 2018-12-20T06:09:30.39167...
    * range              (range) float32 2kB 125.0 375.0 ... 1.471e+05 1.474e+05
      longitude          float64 8B ...
      latitude           float64 8B ...
      altitude           float64 8B ...
    * azimuth            (azimuth) float32 1kB 0.5 1.5 2.5 ... 357.5 358.5 359.5
  Data variables: (12/17)
      DBZH               (azimuth, range) float64 2MB ...
      DBZH_CLEAN         (azimuth, range) float64 2MB ...
      VRADDH             (azimuth, range) float64 2MB ...
      VRADH              (azimuth, range) float64 2MB ...
      WRADH              (azimuth, range) float64 2MB ...
      TH                 (azimuth, range) float64 2MB ...
      ...                 ...
      CLASS              (azimuth, range) float32 850kB ...
      sweep_mode         <U20 80B ...
      sweep_number       int64 8B ...
      prt_mode           <U7 28B ...
      follow_mode        <U7 28B ...
      sweep_fixed_angle  float64 8B ...

  sweep_2

  • Groups: (0)
  • Dimensions:
    • azimuth: 360
    • range: 590
  • Coordinates: (7)
    • elevation
      (azimuth)
      float64
      ...

      standard_name :

      ray_elevation_angle

      long_name :

      elevation_angle_from_horizontal_plane

      units :

      degrees

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float64]

    • time
      (azimuth)
      datetime64[ns]
      2018-12-20T06:09:30.391676928 .....

      standard_name :

      time

      array(['2018-12-20T06:09:30.391676928', '2018-12-20T06:09:30.430565888',
             '2018-12-20T06:09:30.469454848', ..., '2018-12-20T06:09:30.275010048',
             '2018-12-20T06:09:30.313899008', '2018-12-20T06:09:30.352787968'],
            dtype='datetime64[ns]')

    • range
      (range)
      float32
      125.0 375.0 ... 1.471e+05 1.474e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      meters_between_gates :

      250.0

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      125.0

      array([1.25000e+02, 3.75000e+02, 6.25000e+02, ..., 1.46875e+05, 1.47125e+05,
             1.47375e+05], dtype=float32)

    • longitude
      ()
      float64
      ...

      long_name :

      longitude

      units :

      degrees_east

      standard_name :

      longitude

      [1 values with dtype=float64]

    • latitude
      ()
      float64
      ...

      long_name :

      latitude

      units :

      degrees_north

      positive :

      up

      standard_name :

      latitude

      [1 values with dtype=float64]

    • altitude
      ()
      float64
      ...

      long_name :

      altitude

      units :

      meters

      standard_name :

      altitude

      [1 values with dtype=float64]

    • azimuth
      (azimuth)
      float32
      0.5 1.5 2.5 ... 357.5 358.5 359.5

      standard_name :

      ray_azimuth_angle

      long_name :

      azimuth_angle_from_true_north

      units :

      degrees

      axis :

      radial_azimuth_coordinate

      array([  0.5,   1.5,   2.5, ..., 357.5, 358.5, 359.5], dtype=float32)

  • Data variables: (17)
    • DBZH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [212400 values with dtype=float64]

    • DBZH_CLEAN
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radar_equivalent_reflectivity_factor_h

      long_name :

      Equivalent reflectivity factor H

      units :

      dBZ

      [212400 values with dtype=float64]

    • VRADDH
      (azimuth, range)
      float64
      ...

      _Undetect :

      1.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • VRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      long_name :

      Radial velocity of scatterers away from instrument H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • WRADH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_doppler_spectrum_width_h

      long_name :

      Doppler spectrum width H

      units :

      meters per seconds

      [212400 values with dtype=float64]

    • TH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_linear_equivalent_reflectivity_factor_h

      long_name :

      Linear total power H (uncorrected reflectivity)

      units :

      unitless

      [212400 values with dtype=float64]

    • ZDR
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_reflectivity_hv

      long_name :

      Log differential reflectivity H/V

      units :

      dB

      [212400 values with dtype=float64]

    • RHOHV
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_correlation_coefficient_hv

      long_name :

      Correlation coefficient HV

      units :

      unitless

      [212400 values with dtype=float64]

    • PHIDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_differential_phase_hv

      long_name :

      Differential phase HV

      units :

      degrees

      [212400 values with dtype=float64]

    • KDP
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      radar_specific_differential_phase_hv

      long_name :

      Specific differential phase HV

      units :

      degrees per kilometer

      [212400 values with dtype=float64]

    • SNRH
      (azimuth, range)
      float64
      ...

      _Undetect :

      0.0

      standard_name :

      signal_noise_ratio_h

      long_name :

      Signal Noise Ratio H

      units :

      unitless

      [212400 values with dtype=float64]

    • CLASS
      (azimuth, range)
      float32
      ...

      _Undetect :

      -2.0

      [212400 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      ...

      [1 values with dtype=<U20]

    • sweep_number
      ()
      int64
      ...

      [1 values with dtype=int64]

    • prt_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • follow_mode
      ()
      <U7
      ...

      [1 values with dtype=<U7]

    • sweep_fixed_angle
      ()
      float64
      ...

      [1 values with dtype=float64]

  • Attributes: (0)

• Dimensions:
• Coordinates: (0)
• Data variables: (8)
  • volume_number
    ()
    int64
    0

    array(0)

  • platform_type
    ()
    <U5
    'fixed'

    array('fixed', dtype='<U5')

  • instrument_type
    ()
    <U5
    'radar'

    array('radar', dtype='<U5')

  • time_coverage_start
    ()
    <U20
    '2018-12-20T06:06:28Z'

    array('2018-12-20T06:06:28Z', dtype='<U20')

  • time_coverage_end
    ()
    <U20
    '2018-12-20T06:09:34Z'

    array('2018-12-20T06:09:34Z', dtype='<U20')

  • longitude
    ()
    float64
    151.2

    long_name :

    longitude

    units :

    degrees_east

    standard_name :

    longitude

    array(151.20899963)

  • altitude
    ()
    float64
    195.0

    long_name :

    altitude

    units :

    meters

    standard_name :

    altitude

    array(195.)

  • latitude
    ()
    float64
    -33.7

    long_name :

    latitude

    units :

    degrees_north

    positive :

    up

    standard_name :

    latitude

    array(-33.70080185)

• Attributes: (9)

  Conventions :

  ODIM_H5/V2_2

  instrument_name :

  None

  version :

  None

  title :

  None

  institution :

  None

  references :

  None

  source :

  None

  history :

  None

  comment :

  im/exported using xradar
