CfRadial1#

Imports#

[1]:
import os
import tempfile
import cmweather
import numpy as np
import xarray as xr
import xradar as xd
import datatree as xt
from open_radar_data import DATASETS

Download#

Fetching CfRadial1 radar data file from open-radar-data repository.

[2]:
filename = DATASETS.fetch("cfrad.20080604_002217_000_SPOL_v36_SUR.nc")
[3]:
radar = xd.io.open_cfradial1_datatree(filename, first_dim="auto")
display(radar)
<xarray.DatasetView> Size: 477B
Dimensions:              (sweep: 9)
Dimensions without coordinates: sweep
Data variables:
    volume_number        int32 4B ...
    platform_type        |S32 32B ...
    primary_axis         |S32 32B ...
    status_str           |S1 1B ...
    instrument_type      |S32 32B ...
    time_coverage_start  |S32 32B ...
    time_coverage_end    |S32 32B ...
    latitude             float64 8B ...
    longitude            float64 8B ...
    altitude             float64 8B ...
    sweep_group_name     (sweep) <U7 252B 'sweep_0' 'sweep_1' ... 'sweep_8'
    sweep_fixed_angle    (sweep) float32 36B ...
Attributes: (12/13)
    Conventions:         CF/Radial instrument_parameters radar_parameters rad...
    version:             1.2
    title:               TIMREX
    institution:
    references:
    source:
    ...                  ...
    comment:
    instrument_name:     SPOLRVP8
    site_name:
    scan_name:
    scan_id:             0
    platform_is_mobile:  false

Plot Azimuth vs. Range#

[4]:
radar.sweep_0.DBZ.plot(cmap="ChaseSpectral", vmin=-10, vmax=70)
[4]:
<matplotlib.collections.QuadMesh at 0x7f9237949690>

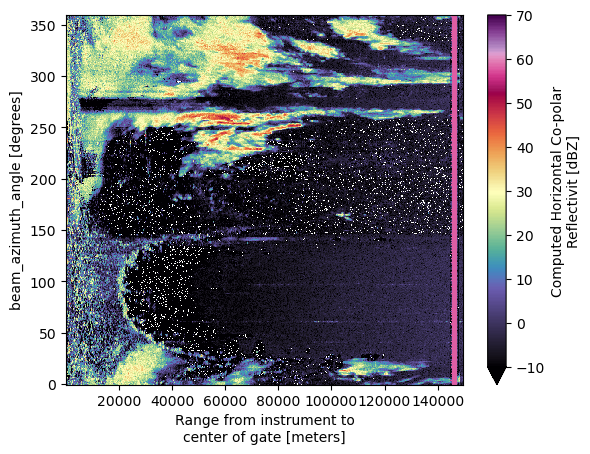

../_images/notebooks_CfRadial1_Export_7_1.png

Plot Time vs. Range#

[5]:
radar.sweep_0.DBZ.swap_dims({"azimuth": "time"}).sortby("time").plot(
    cmap="ChaseSpectral", vmin=-10, vmax=70
)
[5]:
<matplotlib.collections.QuadMesh at 0x7f922f659cd0>

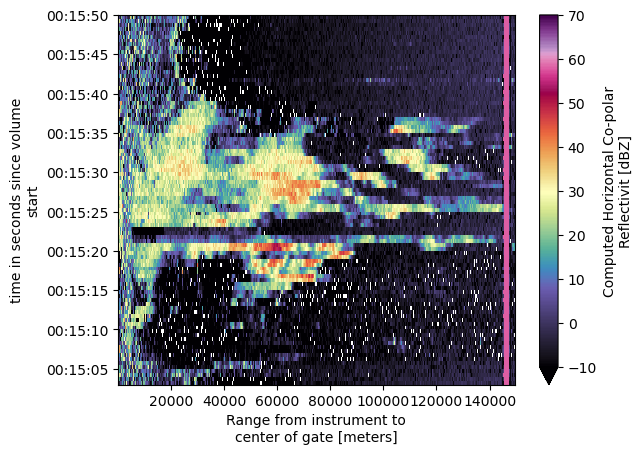

../_images/notebooks_CfRadial1_Export_9_1.png

Georeference#

[6]:
radar = radar.xradar.georeference()
display(radar)
<xarray.DatasetView> Size: 477B
Dimensions:              (sweep: 9)
Dimensions without coordinates: sweep
Data variables:
    volume_number        int32 4B ...
    platform_type        |S32 32B ...
    primary_axis         |S32 32B ...
    status_str           |S1 1B ...
    instrument_type      |S32 32B ...
    time_coverage_start  |S32 32B ...
    time_coverage_end    |S32 32B ...
    latitude             float64 8B ...
    longitude            float64 8B ...
    altitude             float64 8B ...
    sweep_group_name     (sweep) <U7 252B 'sweep_0' 'sweep_1' ... 'sweep_8'
    sweep_fixed_angle    (sweep) float32 36B ...
Attributes: (12/13)
    Conventions:         CF/Radial instrument_parameters radar_parameters rad...
    version:             1.2
    title:               TIMREX
    institution:
    references:
    source:
    ...                  ...
    comment:
    instrument_name:     SPOLRVP8
    site_name:
    scan_name:
    scan_id:             0
    platform_is_mobile:  false

Plot PPI#

[7]:
radar["sweep_0"]["DBZ"].plot(x="x", y="y", cmap="ChaseSpectral", vmin=-10, vmax=70)
[7]:
<matplotlib.collections.QuadMesh at 0x7f922f704ad0>

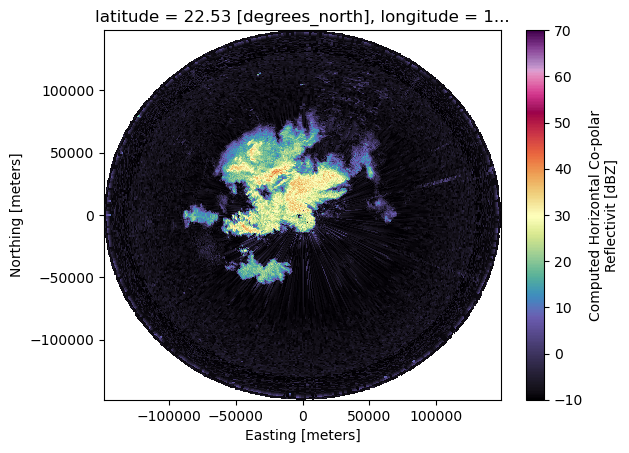

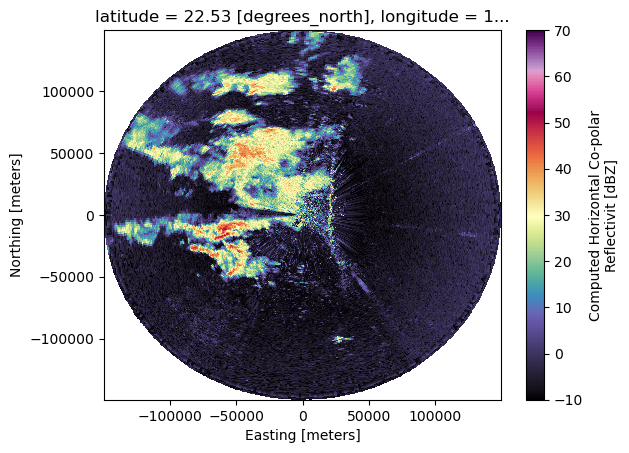

../_images/notebooks_CfRadial1_Export_13_1.png

Filter#

Apply basic reflectivity filter. This is just a demonstration.

[8]:
def ref_filter(dtree, sweep="sweep_0", field="DBZ"):
    ds = dtree[sweep].where((dtree[sweep][field] >= -10) & (dtree[sweep][field] <= 70))
    red_patch =
