Angle Reindexing#
As a legacy from wradlib we have complex code for angle reindexing in xradar’s codebase.
High precision angle coordinates#
As radar angle coordinates (azimuth
or elevation
) are measured constantly by different techniques of detection of the antenna pointing direction the values in the data files are mostly floating point numbers. In many cases these floating point numbers are not rounded to a certain decimal but keep the full possible range of the used dtype.
Problems of that:
1D angle coordinate arrays yield no equidistant vector.
1D angle coordinate arrays are not equivalent for different timesteps but same scan setup
Missing rays, duplicate or additional rays#
Sometimes rays (even sectors) are missing from the dataset, sometimes there are duplicate rays. Another problem with radar data are additional rays, which I call “antenna hickup” (two rays measured with within one resolution interval).
What is angle reindexing?#
Angle reindexing takes care of these problems by trying to determine the wanted layout from the radar metadata and the angle coordinates. With that newly created angle coordinate xarray machinery is used to reindex the radar moment data to that by nearest neighbor lookup (up to a tolerance). Missing rays will be filled with NaN.
Why should it be used?#
For most operations this is not a real problem. It will turn into a problem, if you want to stack your xarray.Dataset radar data on a third dimension (eg. time
, by using open_mfdataset
). Then all coordinates need alignment to keep things simple and manageable (eg. azimuth=[0.5, 1.5, 2.5,..., 359.5]
)
How should we treat it?#
Currently the reindexing code relies on some internals which make things a bit hard to maintain. My suggestion would be to disentangle the reindexing code from the internals but feed the needed values as parameters. Then every reader can call this per activated reindex_angle
kwarg.
Angle Reindexing Example#
[1]:
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
import xradar as xd
from open_radar_data import DATASETS
[2]:
filename = DATASETS.fetch("DWD-Vol-2_99999_20180601054047_00.h5")
[3]:
def fix_angle(ds):
angle_dict = xd.util.extract_angle_parameters(ds)
display(angle_dict)
start_ang = angle_dict["start_angle"]
stop_ang = angle_dict["stop_angle"]
angle_res = angle_dict["angle_res"]
direction = angle_dict["direction"]
# first find exact duplicates and remove
ds = xd.util.remove_duplicate_rays(ds)
# second reindex according to retrieved parameters
ds = xd.util.reindex_angle(
ds, start_ang, stop_ang, angle_res, direction, method="nearest"
)
return ds
Read example data with one additional ray#
[4]:
ds0 = xr.open_dataset(filename, group="sweep_7", engine="gamic", first_dim="auto")
display(ds0.load())
<xarray.Dataset> Size: 17MB Dimensions: (azimuth: 361, range: 1000) Coordinates: elevation (azimuth) float64 3kB 3.098 3.098 3.098 ... 3.098 3.098 time (azimuth) datetime64[ns] 3kB 2018-06-01T05:42:51.84200... * range (range) float32 4kB 75.0 225.0 ... 1.498e+05 1.499e+05 longitude float64 8B 6.457 latitude float64 8B 50.93 altitude float64 8B 310.0 * azimuth (azimuth) float64 3kB 0.5246 1.538 2.521 ... 358.5 359.5 Data variables: (12/17) DBZH (azimuth, range) float32 1MB 14.68 17.69 ... nan nan DBZV (azimuth, range) float32 1MB 12.17 16.69 18.2 ... nan nan KDP (azimuth, range) float32 1MB -15.0 -15.0 ... 0.0 0.0 RHOHV (azimuth, range) float32 1MB 0.9165 0.9463 ... 0.1558 DBTH (azimuth, range) float32 1MB 14.68 17.69 ... 7.656 nan DBTV (azimuth, range) float32 1MB 12.17 16.69 18.2 ... nan nan ... ... PHIDP (azimuth, range) float32 1MB 133.2 119.1 ... -62.36 104.9 sweep_mode <U20 80B 'azimuth_surveillance' sweep_number int64 8B 7 prt_mode <U7 28B 'not_set' follow_mode <U7 28B 'not_set' sweep_fixed_angle float64 8B 3.1
[5]:

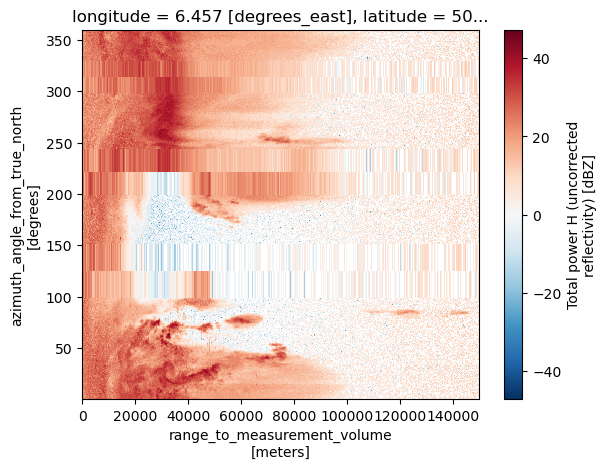

ds0.DBTH.plot()
[5]:
<matplotlib.collections.QuadMesh at 0x7f33be689cd0>
Prepare sweep with several sections removed#
[6]:
ds_in = xr.concat(
[
ds0.isel(azimuth=slice(0, 100)),
ds0.isel(azimuth=slice(150, 200)),
ds0.isel(azimuth=slice(243, 300)),
ds0.isel(azimuth=slice(330, 361)),
],
"azimuth",
data_vars="minimal",
)
display(ds_in)
<xarray.Dataset> Size: 11MB Dimensions: (azimuth: 238, range: 1000) Coordinates: elevation (azimuth) float64 2kB 3.098 3.098 3.098 ... 3.098 3.098 time (azimuth) datetime64[ns] 2kB 2018-06-01T05:42:51.84200... * range (range) float32 4kB 75.0 225.0 ... 1.498e+05 1.499e+05 longitude float64 8B 6.457 latitude float64 8B 50.93 altitude float64 8B 310.0 * azimuth (azimuth) float64 2kB 0.5246 1.538 2.521 ... 358.5 359.5 Data variables: (12/17) DBZH (azimuth, range) float32 952kB 14.68 17.69 ... nan nan DBZV (azimuth, range) float32 952kB 12.17 16.69 ... nan nan KDP (azimuth, range) float32 952kB -15.0 -15.0 ... 0.0 0.0 RHOHV (azimuth, range) float32 952kB 0.9165 0.9463 ... 0.1558 DBTH (azimuth, range) float32 952kB 14.68 17.69 ... 7.656 nan DBTV (azimuth, range) float32 952kB 12.17 16.69 ... nan nan ... ... PHIDP (azimuth, range) float32 952kB 133.2 119.1 ... 104.9 sweep_mode <U20 80B 'azimuth_surveillance' sweep_number int64 8B 7 prt_mode <U7 28B 'not_set' follow_mode <U7 28B 'not_set' sweep_fixed_angle float64 8B 3.1
[7]:

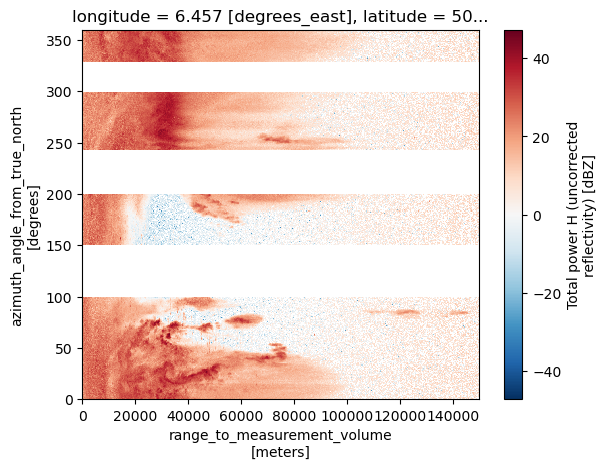

ds_in.DBTH.plot()
[7]:
<matplotlib.collections.QuadMesh at 0x7f33be5acf10>
Reindex angle#
First output is the extracted angle/time dictionary.
[8]:
ds_out = fix_angle(ds_in)
display(ds_out)
{'first_angle': 'azimuth',
'second_angle': 'elevation',
'min_angle': array(0.52459717),
'max_angle': array(359.5111084),
'min_time': numpy.datetime64('2018-06-01T05:42:44.042000000'),
'max_time': numpy.datetime64('2018-06-01T05:43:08.042000000'),
'angles_are_unique': False,
'times_are_unique': True,
'a1gate_idx': array(150),
'a1gate_val': array(243.52020264),
'uniform_angle_spacing': False,
'ascending': array(True),
'direction': 1,
'angle_res': array(1.),
'start_angle': 0,
'stop_angle': 360,
'expected_angle_span': 360,
'missing_rays': array(True),
'excess_rays': array(False),
'expected_number_rays': 360}
<xarray.Dataset> Size: 17MB Dimensions: (range: 1000, azimuth: 360) Coordinates: * range (range) float32 4kB 75.0 225.0 ... 1.498e+05 1.499e+05 * azimuth (azimuth) float64 3kB 0.5 1.5 2.5 ... 357.5 358.5 359.5 elevation (azimuth) float64 3kB 3.098 3.098 3.098 ... 3.098 3.098 time (azimuth) datetime64[ns] 3kB 2018-06-01T05:42:51.84200... longitude float64 8B 6.457 latitude float64 8B 50.93 altitude float64 8B 310.0 Data variables: (12/17) DBZH (azimuth, range) float32 1MB 14.68 17.69 ... nan nan DBZV (azimuth, range) float32 1MB 12.17 16.69 18.2 ... nan nan KDP (azimuth, range) float32 1MB -15.0 -15.0 ... 0.0 0.0 RHOHV (azimuth, range) float32 1MB 0.9165 0.9463 ... 0.1558 DBTH (azimuth, range) float32 1MB 14.68 17.69 ... 7.656 nan DBTV (azimuth, range) float32 1MB 12.17 16.69 18.2 ... nan nan ... ... PHIDP (azimuth, range) float32 1MB 133.2 119.1 ... -62.36 104.9 sweep_mode <U20 80B 'azimuth_surveillance' sweep_number int64 8B 7 prt_mode <U7 28B 'not_set' follow_mode <U7 28B 'not_set' sweep_fixed_angle float64 8B 3.1
[9]:

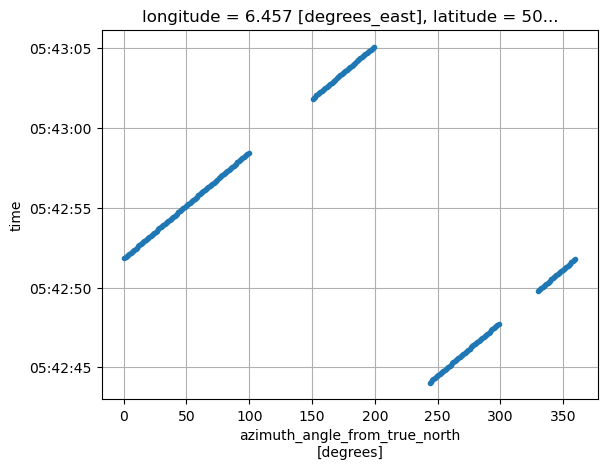

ds_out.time.plot(marker=".")
plt.gca().grid()
We can observe that the dataset is aligned to it’s expected number of rays.
[10]:
ds_out.DBTH.plot()
[10]:
<matplotlib.collections.QuadMesh at 0x7f33be57d410>
Fix timestamps#
As reindexing instantiates the variables/coordinates added rays with NaN
/NaT
we need to take care of the coordinates. The second angle (elevation
in this case is already treated while reindexing by inserting it’s median value, the time coordinate needs special handling.
[11]:
ds_out2 = ds_out.copy(deep=True)
ds_out2 = ds_out2.pipe(xd.util.ipol_time)
/home/docs/checkouts/readthedocs.org/user_builds/xradar/conda/stable/lib/python3.11/site-packages/xradar/util.py:452: UserWarning: Rays might miss on beginning and/or end of sweep. `a1gate` information is needed to fully recover. We'll assume sweep start at first valid ray.
warnings.warn(
[12]:

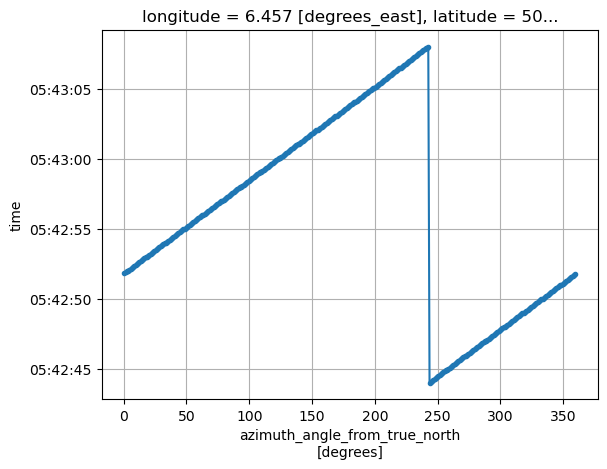

ds_out2.time.plot(marker=".")
plt.gca().grid()
[13]:

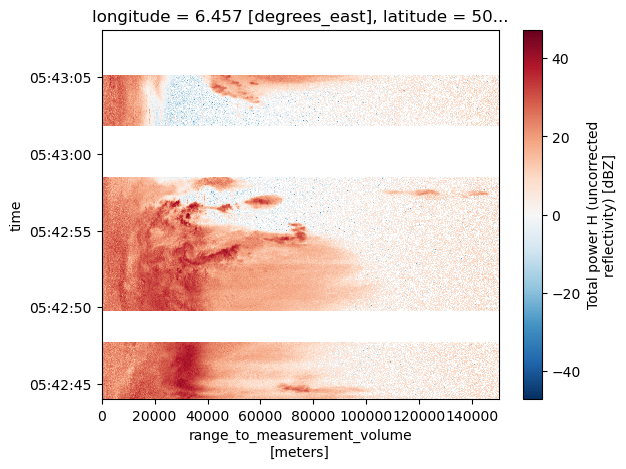

ds_out2.DBTH.sortby("time").plot(y="time")
[13]:
<matplotlib.collections.QuadMesh at 0x7f33b44fc1d0>
