Rainbow#
[1]:
import xarray as xr
from open_radar_data import DATASETS
import xradar as xd
Download#
Fetching Rainbow radar data file from open-radar-data repository.
[2]:
filename = DATASETS.fetch("2013051000000600dBZ.vol")
Downloading file '2013051000000600dBZ.vol' from 'https://github.com/openradar/open-radar-data/raw/main/data/2013051000000600dBZ.vol' to '/home/docs/.cache/open-radar-data'.
xr.open_dataset#
Making use of the xarray rainbow backend. We also need to provide the group. Note, that we are using CfRadial2 group access pattern.
[3]:
ds = xr.open_dataset(filename, group="sweep_0", engine="rainbow")
display(ds)
<xarray.Dataset> Size: 1MB
Dimensions: (azimuth: 361, range: 400)
Coordinates:
elevation (azimuth) float64 3kB ...
* range (range) float32 2kB 125.0 375.0 ... 9.962e+04 9.988e+04
time (azimuth) datetime64[ns] 3kB ...
longitude float64 8B ...
latitude float64 8B ...
altitude float64 8B ...
* azimuth (azimuth) float64 3kB 0.5055 1.549 2.505 ... 358.5 359.5
Data variables:
DBZH (azimuth, range) float64 1MB ...
sweep_mode <U20 80B ...
sweep_number int64 8B ...
prt_mode <U7 28B ...
follow_mode <U7 28B ...

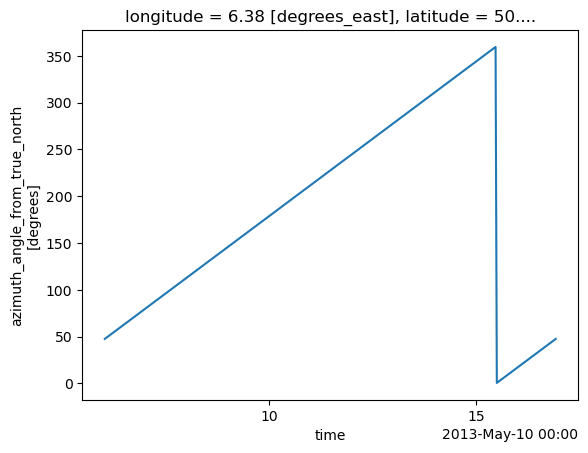

sweep_fixed_angle float64 8B ...Plot Time vs. Azimuth#
We need to sort by time and specify the coordinate.
[4]:
ds.azimuth.sortby("time").plot(x="time")
[4]:
[<matplotlib.lines.Line2D at 0x7f9e6624a5d0>]

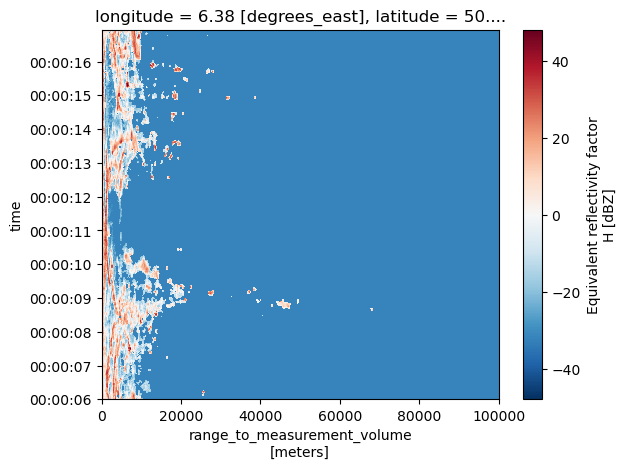

Plot Range vs. Time#
We need to sort by time and specify the coordinate.
[5]:
ds.DBZH.sortby("time").plot(y="time")
[5]:
<matplotlib.collections.QuadMesh at 0x7f9e66248710>

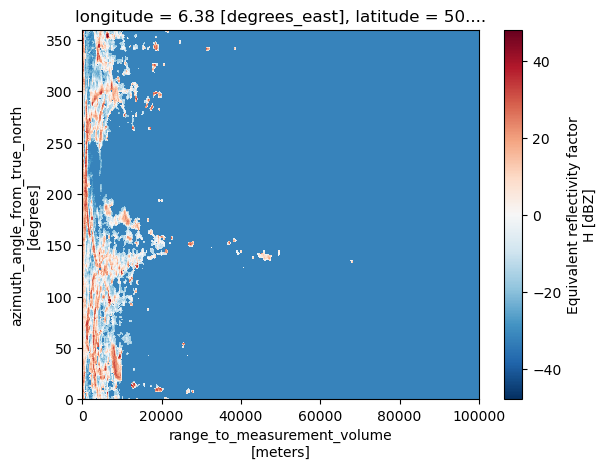

Plot Range vs. Azimuth#
[6]:
ds.DBZH.plot()
[6]:
<matplotlib.collections.QuadMesh at 0x7f9e65f58710>
backend_kwargs#
Beside first_dim there are several additional backend_kwargs for the rainbow backend, which handle different aspects of angle alignment. This comes into play, when azimuth and/or elevation arrays are not evenly spacend and other issues.
[7]:
help(xd.io.RainbowBackendEntrypoint)
Help on class RainbowBackendEntrypoint in module xradar.io.backends.rainbow:
class RainbowBackendEntrypoint(xarray.backends.common.BackendEntrypoint)
| Xarray BackendEntrypoint for Rainbow5 data.
|
| Method resolution order:
| RainbowBackendEntrypoint
| xarray.backends.common.BackendEntrypoint
| builtins.object
|
| Methods defined here:
|
| open_dataset(self, filename_or_obj, *, mask_and_scale=True, decode_times=True, concat_characters=True, decode_coords=True, drop_variables=None, use_cftime=None, decode_timedelta=None, group=None, reindex_angle=False, first_dim='auto', site_coords=True)
| Backend open_dataset method used by Xarray in :py:func:`~xarray.open_dataset`.
|
| ----------------------------------------------------------------------
| Data and other attributes defined here:
|
| __annotations__ = {}
|
| description = 'Open Rainbow5 files in Xarray'
|
| open_dataset_parameters = ('filename_or_obj', 'mask_and_scale', 'decod...
|
| url = 'https://xradar.rtfd.io/latest/io.html#rainbow-data-i-o'
|
| ----------------------------------------------------------------------
| Methods inherited from xarray.backends.common.BackendEntrypoint:
|
| __repr__(self) -> 'str'
| Return repr(self).
|
| guess_can_open(self, filename_or_obj: 'str | os.PathLike[Any] | BufferedIOBase | AbstractDataStore') -> 'bool'
| Backend open_dataset method used by Xarray in :py:func:`~xarray.open_dataset`.
|
| open_datatree(self, filename_or_obj: 'str | os.PathLike[Any] | BufferedIOBase | AbstractDataStore', **kwargs: 'Any') -> 'DataTree'
| Backend open_datatree method used by Xarray in :py:func:`~xarray.open_datatree`.
|
| open_groups_as_dict(self, filename_or_obj: 'str | os.PathLike[Any] | BufferedIOBase | AbstractDataStore', **kwargs: 'Any') -> 'dict[str, Dataset]'
| Opens a dictionary mapping from group names to Datasets.
|
| Called by :py:func:`~xarray.open_groups`.
| This function exists to provide a universal way to open all groups in a file,
| before applying any additional consistency checks or requirements necessary
| to create a `DataTree` object (typically done using :py:meth:`~xarray.DataTree.from_dict`).
|
| ----------------------------------------------------------------------
| Data descriptors inherited from xarray.backends.common.BackendEntrypoint:
|
| __dict__
| dictionary for instance variables
|
| __weakref__
| list of weak references to the object
[8]:
ds = xr.open_dataset(filename, group="sweep_1", engine="rainbow", first_dim="time")
display(ds)
<xarray.Dataset> Size: 1MB
Dimensions: (time: 361, range: 400)
Coordinates:
elevation (time) float64 3kB ...
* range (range) float32 2kB 125.0 375.0 ... 9.962e+04 9.988e+04
* time (time) datetime64[ns] 3kB 2013-05-10T00:00:19.01515150...
longitude float64 8B ...
latitude float64 8B ...
altitude float64 8B ...
azimuth (time) float64 3kB ...
Data variables:
DBZH (time, range) float64 1MB ...
sweep_mode <U20 80B ...
sweep_number int64 8B ...
prt_mode <U7 28B ...
follow_mode <U7 28B ...
sweep_fixed_angle float64 8B ...open_odim_datatree#
The same works analoguous with the datatree loader. But additionally we can provide a sweep string, number or list.
[9]:
help(xd.io.open_rainbow_datatree)
Help on function open_rainbow_datatree in module xradar.io.backends.rainbow:
open_rainbow_datatree(filename_or_obj, **kwargs)
Open ODIM_H5 dataset as :py:class:`datatree.DataTree`.
Parameters
----------
filename_or_obj : str, Path, file-like or DataStore
Strings and Path objects are interpreted as a path to a local or remote
radar file
Keyword Arguments
-----------------
sweep : int, list of int, optional
Sweep number(s) to extract, default to first sweep. If None, all sweeps are
extracted into a list.
first_dim : str
Can be ``time`` or ``auto`` first dimension. If set to ``auto``,
first dimension will be either ``azimuth`` or ``elevation`` depending on
type of sweep. Defaults to ``auto``.
reindex_angle : bool or dict
Defaults to False, no reindexing. Given dict should contain the kwargs to
reindex_angle. Only invoked if `decode_coord=True`.
fix_second_angle : bool
If True, fixes erroneous second angle data. Defaults to ``False``.
site_coords : bool
Attach radar site-coordinates to Dataset, defaults to ``True``.
kwargs : dict
Additional kwargs are fed to :py:func:`xarray.open_dataset`.
Returns
-------
dtree: datatree.DataTree
DataTree
[10]:
dtree = xd.io.open_rainbow_datatree(filename, sweep="sweep_8")
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2013-05-10T00:01:55Z'
time_coverage_end <U20 80B '2013-05-10T00:02:05Z'
longitude float64 8B 6.38
altitude float64 8B 116.7
latitude float64 8B 50.86
Attributes:
Conventions: None
instrument_name: None
version: None
title: None
institution: None
references: None
source: None
history: None

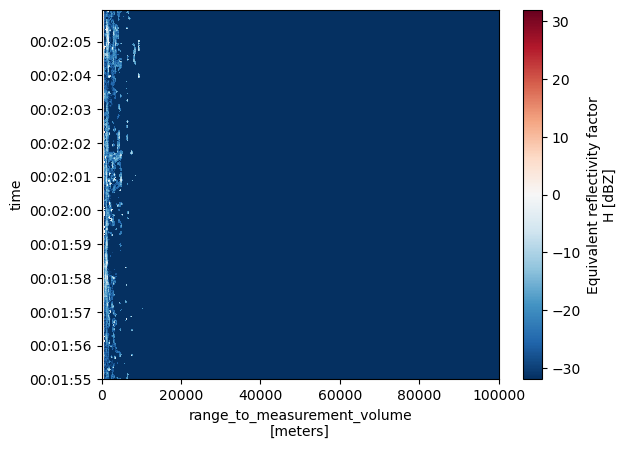

comment: im/exported using xradarPlot Sweep Range vs. Time#
[11]:
dtree["sweep_0"].ds.DBZH.sortby("time").plot(y="time")
[11]:
<matplotlib.collections.QuadMesh at 0x7f9e5c30a810>

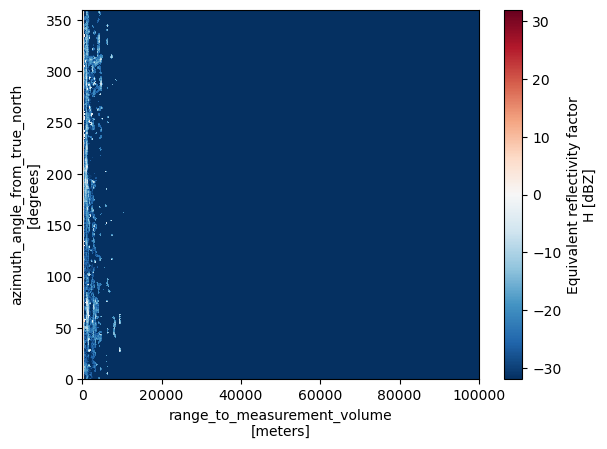

Plot Sweep Range vs. Azimuth#
[12]:
dtree["sweep_0"].ds.DBZH.plot()
[12]:
<matplotlib.collections.QuadMesh at 0x7f9e5c202810>
[13]:
dtree = xd.io.open_rainbow_datatree(filename, sweep="sweep_8")
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2013-05-10T00:01:55Z'
time_coverage_end <U20 80B '2013-05-10T00:02:05Z'
longitude float64 8B 6.38
altitude float64 8B 116.7
latitude float64 8B 50.86
Attributes:
Conventions: None
instrument_name: None
version: None
title: None
institution: None
references: None
source: None
history: None
comment: im/exported using xradar[14]:
dtree = xd.io.open_rainbow_datatree(filename, sweep=[0, 1, 8])
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2013-05-10T00:00:19Z'
time_coverage_end <U20 80B '2013-05-10T00:02:19Z'
longitude float64 8B 6.38
altitude float64 8B 116.7
latitude float64 8B 50.86
Attributes:
Conventions: None
instrument_name: None
version: None
title: None
institution: None
references: None
source: None
history: None
comment: im/exported using xradar[15]:
dtree = xd.io.open_rainbow_datatree(filename, sweep=["sweep_1", "sweep_2", "sweep_8"])
display(dtree)
<xarray.DatasetView> Size: 232B
Dimensions: ()
Data variables:
volume_number int64 8B 0
platform_type <U5 20B 'fixed'
instrument_type <U5 20B 'radar'
time_coverage_start <U20 80B '2013-05-10T00:00:19Z'
time_coverage_end <U20 80B '2013-05-10T00:02:05Z'
longitude float64 8B 6.38
altitude float64 8B 116.7
latitude float64 8B 50.86
Attributes:
Conventions: None
instrument_name: None
version: None
title: None
institution: None
references: None
source: None
history: None
comment: im/exported using xradar
