IMD - Reader

The India Meteorological Department (IMD) publishes radar data as NetCDF4 files with an IRIS-inspired variable layout. Each file holds one sweep; a complete volume is assembled from multiple files: typically 2-3 files for long-range PPI and 9-10 files for short-range, high-resolution PPI.

import xarray as xr
from open_radar_data import DATASETS

import xradar as xd

Download

Fetching IMD radar data files from open-radar-data repository.

filename_sweep_0 = DATASETS.fetch("IMD/JPR220822135253-IMD-B.nc")
filename_sweep_1 = DATASETS.fetch("IMD/JPR220822135253-IMD-B.nc.1")
volume_files = [
    DATASETS.fetch(f"IMD/JPR220822135253-IMD-B.nc{s}")
    for s in ["", ".1", ".2", ".3", ".4", ".5", ".6", ".7", ".8", ".9"]
]

Downloading file 'IMD/JPR220822135253-IMD-B.nc' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.1' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.1' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.2' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.2' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.3' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.3' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.4' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.4' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.5' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.5' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.6' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.6' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.7' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.7' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.8' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.8' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822135253-IMD-B.nc.9' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822135253-IMD-B.nc.9' to '/home/docs/.cache/open-radar-data'.

xr.open_dataset — a single sweep

The xarray imd backend reads a single IMD NetCDF file and returns a CfRadial2-compatible sweep Dataset. Moments are renamed (T→DBTH, Z→DBZH, V→VRADH, W→WRADH; dual-pol sites additionally carry ZDR and HCLASS) and canonical CfRadial2 moment attributes (standard_name, long_name, units) are applied.

ds = xr.open_dataset(filename_sweep_0, engine="imd")
display(ds)

<xarray.Dataset> Size: 9MB
Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
Coordinates:
  * azimuth                   (azimuth) float32 1kB 0.1703 1.005 ... 358.2 359.0
    elevation                 (azimuth) float32 1kB ...
    time                      (azimuth) datetime64[ns] 3kB ...
  * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
  * frequency                 (frequency) float32 4B 5.625e+09
    latitude                  float32 4B ...
    longitude                 float32 4B ...
    altitude                  float32 4B ...
Data variables: (12/47)
    nyquist_velocity          float32 4B ...
    unambiguous_range         float32 4B ...
    calibConst                float32 4B ...
    radarConst                float32 4B ...
    radar_beam_width_h        float32 4B ...
    radar_receiver_bandwidth  float32 4B ...
    ...                        ...
    scan_rate                 (azimuth) float32 1kB ...
    n_samples                 (azimuth) int32 1kB ...
    pulse_width               (azimuth) float32 1kB ...
    sweep_fixed_angle         float64 8B ...
    sweep_number              int64 8B ...
    rays_angle_resolution     float64 8B ...
Attributes:
    Content:              This file contains one scan of remotely sensed data
    history:              Encoded into netcdf from IRIS data
    title:                IRIS data
    Conventions:          FSL netCDF
    time_coverage_start:  2022-08-22T13:52:53Z
    time_coverage_end:    2022-08-22T13:53:28Z

xarray.Dataset

• Dimensions:
  • azimuth: 360
  • range: 999
  • frequency: 1
• Coordinates: (8)
  • azimuth
    (azimuth)
    float32
    0.1703 1.005 2.148 ... 358.2 359.0

    units :

    degrees

    standard_name :

    sensor_to_target_azimuth_angle

    long_name :

    Azimuth angle from true north

    axis :

    radial_azimuth_coordinate

    array([1.702881e-01, 1.005249e+00, 2.147827e+00, ..., 3.570117e+02,
           3.581543e+02, 3.590167e+02], shape=(360,), dtype=float32)

  • elevation
    (azimuth)
    float32
    ...

    units :

    degrees

    standard_name :

    sensor_to_target_elevation_angle

    long_name :

    Elevation angle from horizontal plane

    axis :

    radial_elevation_coordinate

    [360 values with dtype=float32]

  • time
    (azimuth)
    datetime64[ns]
    ...

    long_name :

    Time of radial

    [360 values with dtype=datetime64[ns]]

  • range
    (range)
    float64
    300.0 550.0 ... 2.496e+05 2.498e+05

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    300.0

    meters_between_gates :

    250.0

    array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

  • frequency
    (frequency)
    float32
    5.625e+09

    units :

    s-1

    standard_name :

    radiation_frequency

    long_name :

    Radiation frequency

    array([5.624624e+09], dtype=float32)

  • latitude
    ()
    float32
    ...

    units :

    degrees_north

    long_name :

    Latitude of site

    [1 values with dtype=float32]

  • longitude
    ()
    float32
    ...

    units :

    degrees_east

    long_name :

    Longitude of site

    [1 values with dtype=float32]

  • altitude
    ()
    float32
    ...

    units :

    meter

    long_name :

    Altitude of site above mean sea level

    [1 values with dtype=float32]

• Data variables: (47)
  • nyquist_velocity
    ()
    float32
    ...

    units :

    meter/second

    long_name :

    Nyquist velocity

    [1 values with dtype=float32]

  • unambiguous_range
    ()
    float32
    ...

    units :

    kilometer

    long_name :

    Unambiguous range

    [1 values with dtype=float32]

  • calibConst
    ()
    float32
    ...

    units :

    dB

    long_name :

    System gain calibration constant

    [1 values with dtype=float32]

  • radarConst
    ()
    float32
    ...

    units :

    long_name :

    Radar Constant

    [1 values with dtype=float32]

  • radar_beam_width_h
    ()
    float32
    ...

    units :

    degrees

    long_name :

    Horizontal Beam Width

    [1 values with dtype=float32]

  • radar_receiver_bandwidth
    ()
    float32
    ...

    units :

    hertz

    long_name :

    Band Width

    [1 values with dtype=float32]

  • filterDop
    ()
    int16
    ...

    long_name :

    Ground clutter filter information

    [1 values with dtype=int16]

  • dwellTime
    ()
    float32
    ...

    units :

    millisecond

    long_name :

    Dwell time of pulses

    [1 values with dtype=float32]

  • calI0
    ()
    float32
    ...

    units :

    dBm

    long_name :

    Intercept of fit line with Noise Level

    [1 values with dtype=float32]

  • calNoise
    ()
    float32
    ...

    units :

    dBm

    long_name :

    Calibration Noise

    [1 values with dtype=float32]

  • altitude_agl
    ()
    float32
    ...

    units :

    meter

    long_name :

    Radar Site,Ground Height

    [1 values with dtype=float32]

  • meltHeight
    ()
    float32
    ...

    units :

    meter

    long_name :

    Melting Layer Height

    [1 values with dtype=float32]

  • logNoise
    ()
    float32
    ...

    units :

    long_name :

    LOG Channel Noise

    [1 values with dtype=float32]

  • linNoise
    ()
    float32
    ...

    units :

    long_name :

    Linearized LOG Power Noise

    [1 values with dtype=float32]

  • inphaseOffset
    ()
    float32
    ...

    units :

    long_name :

    Inphase Offset

    [1 values with dtype=float32]

  • quadratureOffset
    ()
    float32
    ...

    units :

    long_name :

    Quadrature Offset

    [1 values with dtype=float32]

  • logSlope
    ()
    float32
    ...

    units :

    long_name :

    LOG conversion Slope

    [1 values with dtype=float32]

  • logFilter
    ()
    int32
    ...

    units :

    long_name :

    Log filter used on first bin

    [1 values with dtype=int32]

  • filterPntClt
    ()
    int32
    ...

    units :

    long_name :

    Side skip in low 4 bits, 0=feature off

    [1 values with dtype=int32]

  • filterThreshold
    ()
    float32
    ...

    units :

    dB

    long_name :

    Point Clutter Threshold

    [1 values with dtype=float32]

  • SQIThresh
    ()
    float32
    ...

    long_name :

    Signal Quality Index Threshold

    [1 values with dtype=float32]

  • LOGThresh
    ()
    float32
    ...

    units :

    dB

    long_name :

    LOG noise threshold

    [1 values with dtype=float32]

  • SIGThresh
    ()
    float32
    ...

    units :

    dB

    long_name :

    Signal power threshold

    [1 values with dtype=float32]

  • CSRThresh
    ()
    float32
    ...

    units :

    dB

    long_name :

    Clutter Correction threshold

    [1 values with dtype=float32]

  • DBTThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

    [1 values with dtype=int32]

  • DBZThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    Corrected Z flags. see also DBTThreshFlag.

    [1 values with dtype=int32]

  • VELThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    Velocity flags. see also DBTThreshFlag.

    [1 values with dtype=int32]

  • WIDThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    Spectral Width flags. see also DBTThreshFlag.

    [1 values with dtype=int32]

  • radar_beam_width_v
    ()
    float32
    ...

    units :

    degree

    long_name :

    Vertical Beam Width

    [1 values with dtype=float32]

  • DBTH
    (azimuth, range)
    float32
    ...

    units :

    dBZ

    long_name :

    Total power H (uncorrected reflectivity)

    polarization :

    Horizontal

    standard_name :

    radar_equivalent_reflectivity_factor_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • DBZH
    (azimuth, range)
    float32
    ...

    units :

    dBZ

    long_name :

    Equivalent reflectivity factor H

    polarization :

    Horizontal

    standard_name :

    radar_equivalent_reflectivity_factor_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • VRADH
    (azimuth, range)
    float32
    ...

    units :

    meters per seconds

    long_name :

    Radial velocity of scatterers away from instrument H

    polarization :

    Horizontal

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • WRADH
    (azimuth, range)
    float32
    ...

    units :

    meters per seconds

    long_name :

    Doppler spectrum width H

    polarization :

    Horizontal

    standard_name :

    radar_doppler_spectrum_width_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • ZDR
    (azimuth, range)
    float32
    ...

    units :

    dB

    long_name :

    Log differential reflectivity H/V

    polarization :

    Horizontal and Vertical

    standard_name :

    radar_differential_reflectivity_hv

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • HCLASS
    (azimuth, range)
    float32
    ...

    units :

    long_name :

    Hydrological Classification

    polarization :

    Horizontal and Vertical

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • sweep_mode
    ()
    <U20
    ...

    [1 values with dtype=<U20]

  • scan_type
    ()
    <U3
    ...

    [1 values with dtype=<U3]

  • follow_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • prt
    (azimuth)
    float32
    ...

    units :

    seconds

    long_name :

    Pulse repetition time

    [360 values with dtype=float32]

  • prt_ratio
    (azimuth)
    float32
    ...

    long_name :

    PRT ratio (high/low)

    [360 values with dtype=float32]

  • prt_mode
    ()
    <U9
    ...

    [1 values with dtype=<U9]

  • scan_rate
    (azimuth)
    float32
    ...

    units :

    degrees/s

    long_name :

    Antenna scan rate

    [360 values with dtype=float32]

  • n_samples
    (azimuth)
    int32
    ...

    long_name :

    Maximum number of samples used to compute moments

    [360 values with dtype=int32]

  • pulse_width
    (azimuth)
    float32
    ...

    units :

    seconds

    long_name :

    Pulse width

    [360 values with dtype=float32]

  • sweep_fixed_angle
    ()
    float64
    ...

    long_name :

    Fixed angle of sweep

    units :

    degrees

    [1 values with dtype=float64]

  • sweep_number
    ()
    int64
    ...

    [1 values with dtype=int64]

  • rays_angle_resolution
    ()
    float64
    ...

    long_name :

    Angular resolution between rays

    units :

    degrees

    [1 values with dtype=float64]

• Attributes: (6)

  Content :

  This file contains one scan of remotely sensed data

  history :

  Encoded into netcdf from IRIS data

  title :

  IRIS data

  Conventions :

  FSL netCDF

  time_coverage_start :

  2022-08-22T13:52:53Z

  time_coverage_end :

  2022-08-22T13:53:28Z

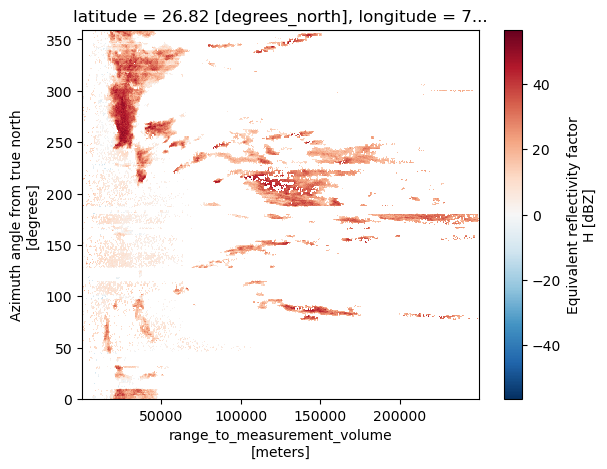

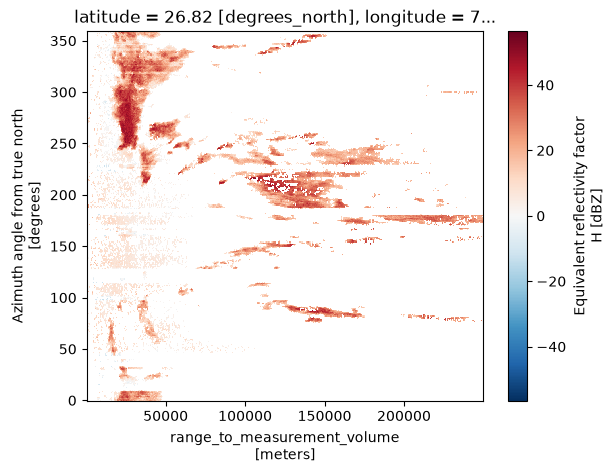

Plot Range vs. Azimuth

ds.DBZH.plot(y="azimuth")

<matplotlib.collections.QuadMesh at 0x76a282f4f230>

backend_kwargs

help(xd.io.IMDBackendEntrypoint)

Help on class IMDBackendEntrypoint in module xradar.io.backends.imd:

class IMDBackendEntrypoint(xarray.backends.common.BackendEntrypoint)
 |  Xarray BackendEntrypoint for India Meteorological Department (IMD) radar files.
 |
 |  IMD provides one NetCDF file per sweep. Open a single file with
 |  ``xr.open_dataset(file, engine="imd")`` to get a CfRadial2-compatible sweep
 |  :py:class:`xarray.Dataset`. To assemble a multi-sweep volume, use
 |  :func:`open_imd_datatree` with a list of files.
 |
 |  Keyword Arguments
 |  -----------------
 |  first_dim : str
 |      Can be ``time`` or ``auto`` (default). ``auto`` selects ``azimuth``
 |      (PPI) or ``elevation`` (RHI) as the first dimension.
 |  reindex_angle : bool or dict
 |      If a dict, kwargs are passed to :func:`xradar.util.reindex_angle`.
 |      Defaults to ``False``.
 |  site_as_coords : bool
 |      If True (default), promote ``latitude``/``longitude``/``altitude`` to
 |      Dataset coordinates.
 |
 |  Method resolution order:
 |      IMDBackendEntrypoint
 |      xarray.backends.common.BackendEntrypoint
 |      builtins.object
 |
 |  Methods defined here:
 |
 |  open_dataset(
 |      self,
 |      filename_or_obj,
 |      *,
 |      mask_and_scale=True,
 |      decode_times=True,
 |      concat_characters=True,
 |      decode_coords=True,
 |      drop_variables=None,
 |      use_cftime=None,
 |      decode_timedelta=None,
 |      format=None,
 |      group=None,
 |      first_dim='auto',
 |      reindex_angle=False,
 |      site_as_coords=True
 |  )
 |      Backend open_dataset method used by Xarray in :py:func:`~xarray.open_dataset`.
 |
 |  ----------------------------------------------------------------------
 |  Data and other attributes defined here:
 |
 |  __annotations__ = {}
 |
 |  description = 'Open India Meteorological Department (IMD) radar NetCDF...
 |
 |  open_dataset_parameters = ('filename_or_obj', 'mask_and_scale', 'decod...
 |
 |  url = 'https://xradar.rtfd.io/en/latest/io.html#imd'
 |
 |  ----------------------------------------------------------------------
 |  Methods inherited from xarray.backends.common.BackendEntrypoint:
 |
 |  __repr__(self) -> 'str'
 |      Return repr(self).
 |
 |  guess_can_open(self, filename_or_obj: 'T_PathFileOrDataStore') -> 'bool'
 |      Backend open_dataset method used by Xarray in :py:func:`~xarray.open_dataset`.
 |
 |  open_datatree(
 |      self,
 |      filename_or_obj: 'T_PathFileOrDataStore',
 |      *,
 |      drop_variables: 'str | Iterable[str] | None' = None
 |  ) -> 'DataTree'
 |      Backend open_datatree method used by Xarray in :py:func:`~xarray.open_datatree`.
 |
 |      If implemented, set the class variable supports_groups to True.
 |
 |  open_groups_as_dict(
 |      self,
 |      filename_or_obj: 'T_PathFileOrDataStore',
 |      *,
 |      drop_variables: 'str | Iterable[str] | None' = None
 |  ) -> 'dict[str, Dataset]'
 |      Opens a dictionary mapping from group names to Datasets.
 |
 |      Called by :py:func:`~xarray.open_groups`.
 |      This function exists to provide a universal way to open all groups in a file,
 |      before applying any additional consistency checks or requirements necessary
 |      to create a `DataTree` object (typically done using :py:meth:`~xarray.DataTree.from_dict`).
 |
 |      If implemented, set the class variable supports_groups to True.
 |
 |  ----------------------------------------------------------------------
 |  Data descriptors inherited from xarray.backends.common.BackendEntrypoint:
 |
 |  __dict__
 |      dictionary for instance variables
 |
 |  __weakref__
 |      list of weak references to the object
 |
 |  ----------------------------------------------------------------------
 |  Data and other attributes inherited from xarray.backends.common.BackendEntrypoint:
 |
 |  supports_groups = False

ds = xr.open_dataset(filename_sweep_0, engine="imd", first_dim="time")
display(ds)

<xarray.Dataset> Size: 9MB
Dimensions:                   (time: 360, range: 999, frequency: 1)
Coordinates:
  * time                      (time) datetime64[ns] 3kB 2022-08-22T13:52:53 ....
    azimuth                   (time) float32 1kB ...
    elevation                 (time) float32 1kB ...
  * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
  * frequency                 (frequency) float32 4B 5.625e+09
    latitude                  float32 4B ...
    longitude                 float32 4B ...
    altitude                  float32 4B ...
Data variables: (12/47)
    nyquist_velocity          float32 4B ...
    unambiguous_range         float32 4B ...
    calibConst                float32 4B ...
    radarConst                float32 4B ...
    radar_beam_width_h        float32 4B ...
    radar_receiver_bandwidth  float32 4B ...
    ...                        ...
    scan_rate                 (time) float32 1kB ...
    n_samples                 (time) int32 1kB ...
    pulse_width               (time) float32 1kB ...
    sweep_fixed_angle         float64 8B ...
    sweep_number              int64 8B ...
    rays_angle_resolution     float64 8B ...
Attributes:
    Content:              This file contains one scan of remotely sensed data
    history:              Encoded into netcdf from IRIS data
    title:                IRIS data
    Conventions:          FSL netCDF
    time_coverage_start:  2022-08-22T13:52:53Z
    time_coverage_end:    2022-08-22T13:53:28Z

xarray.Dataset

• Dimensions:
  • time: 360
  • range: 999
  • frequency: 1
• Coordinates: (8)
  • time
    (time)
    datetime64[ns]
    2022-08-22T13:52:53 ... 2022-08-...

    long_name :

    Time of radial

    array(['2022-08-22T13:52:53.000000000', '2022-08-22T13:52:53.000000000',
           '2022-08-22T13:52:53.000000000', ..., '2022-08-22T13:53:28.000000000',
           '2022-08-22T13:53:28.000000000', '2022-08-22T13:53:28.000000000'],
          shape=(360,), dtype='datetime64[ns]')

  • azimuth
    (time)
    float32
    ...

    units :

    degrees

    standard_name :

    sensor_to_target_azimuth_angle

    long_name :

    Azimuth angle from true north

    axis :

    radial_azimuth_coordinate

    [360 values with dtype=float32]

  • elevation
    (time)
    float32
    ...

    units :

    degrees

    standard_name :

    sensor_to_target_elevation_angle

    long_name :

    Elevation angle from horizontal plane

    axis :

    radial_elevation_coordinate

    [360 values with dtype=float32]

  • range
    (range)
    float64
    300.0 550.0 ... 2.496e+05 2.498e+05

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    300.0

    meters_between_gates :

    250.0

    array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

  • frequency
    (frequency)
    float32
    5.625e+09

    units :

    s-1

    standard_name :

    radiation_frequency

    long_name :

    Radiation frequency

    array([5.624624e+09], dtype=float32)

  • latitude
    ()
    float32
    ...

    units :

    degrees_north

    long_name :

    Latitude of site

    [1 values with dtype=float32]

  • longitude
    ()
    float32
    ...

    units :

    degrees_east

    long_name :

    Longitude of site

    [1 values with dtype=float32]

  • altitude
    ()
    float32
    ...

    units :

    meter

    long_name :

    Altitude of site above mean sea level

    [1 values with dtype=float32]

• Data variables: (47)
  • nyquist_velocity
    ()
    float32
    ...

    units :

    meter/second

    long_name :

    Nyquist velocity

    [1 values with dtype=float32]

  • unambiguous_range
    ()
    float32
    ...

    units :

    kilometer

    long_name :

    Unambiguous range

    [1 values with dtype=float32]

  • calibConst
    ()
    float32
    ...

    units :

    dB

    long_name :

    System gain calibration constant

    [1 values with dtype=float32]

  • radarConst
    ()
    float32
    ...

    units :

    long_name :

    Radar Constant

    [1 values with dtype=float32]

  • radar_beam_width_h
    ()
    float32
    ...

    units :

    degrees

    long_name :

    Horizontal Beam Width

    [1 values with dtype=float32]

  • radar_receiver_bandwidth
    ()
    float32
    ...

    units :

    hertz

    long_name :

    Band Width

    [1 values with dtype=float32]

  • filterDop
    ()
    int16
    ...

    long_name :

    Ground clutter filter information

    [1 values with dtype=int16]

  • dwellTime
    ()
    float32
    ...

    units :

    millisecond

    long_name :

    Dwell time of pulses

    [1 values with dtype=float32]

  • calI0
    ()
    float32
    ...

    units :

    dBm

    long_name :

    Intercept of fit line with Noise Level

    [1 values with dtype=float32]

  • calNoise
    ()
    float32
    ...

    units :

    dBm

    long_name :

    Calibration Noise

    [1 values with dtype=float32]

  • altitude_agl
    ()
    float32
    ...

    units :

    meter

    long_name :

    Radar Site,Ground Height

    [1 values with dtype=float32]

  • meltHeight
    ()
    float32
    ...

    units :

    meter

    long_name :

    Melting Layer Height

    [1 values with dtype=float32]

  • logNoise
    ()
    float32
    ...

    units :

    long_name :

    LOG Channel Noise

    [1 values with dtype=float32]

  • linNoise
    ()
    float32
    ...

    units :

    long_name :

    Linearized LOG Power Noise

    [1 values with dtype=float32]

  • inphaseOffset
    ()
    float32
    ...

    units :

    long_name :

    Inphase Offset

    [1 values with dtype=float32]

  • quadratureOffset
    ()
    float32
    ...

    units :

    long_name :

    Quadrature Offset

    [1 values with dtype=float32]

  • logSlope
    ()
    float32
    ...

    units :

    long_name :

    LOG conversion Slope

    [1 values with dtype=float32]

  • logFilter
    ()
    int32
    ...

    units :

    long_name :

    Log filter used on first bin

    [1 values with dtype=int32]

  • filterPntClt
    ()
    int32
    ...

    units :

    long_name :

    Side skip in low 4 bits, 0=feature off

    [1 values with dtype=int32]

  • filterThreshold
    ()
    float32
    ...

    units :

    dB

    long_name :

    Point Clutter Threshold

    [1 values with dtype=float32]

  • SQIThresh
    ()
    float32
    ...

    long_name :

    Signal Quality Index Threshold

    [1 values with dtype=float32]

  • LOGThresh
    ()
    float32
    ...

    units :

    dB

    long_name :

    LOG noise threshold

    [1 values with dtype=float32]

  • SIGThresh
    ()
    float32
    ...

    units :

    dB

    long_name :

    Signal power threshold

    [1 values with dtype=float32]

  • CSRThresh
    ()
    float32
    ...

    units :

    dB

    long_name :

    Clutter Correction threshold

    [1 values with dtype=float32]

  • DBTThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

    [1 values with dtype=int32]

  • DBZThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    Corrected Z flags. see also DBTThreshFlag.

    [1 values with dtype=int32]

  • VELThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    Velocity flags. see also DBTThreshFlag.

    [1 values with dtype=int32]

  • WIDThreshFlag
    ()
    int32
    ...

    units :

    long_name :

    Spectral Width flags. see also DBTThreshFlag.

    [1 values with dtype=int32]

  • radar_beam_width_v
    ()
    float32
    ...

    units :

    degree

    long_name :

    Vertical Beam Width

    [1 values with dtype=float32]

  • DBTH
    (time, range)
    float32
    ...

    units :

    dBZ

    long_name :

    Total power H (uncorrected reflectivity)

    polarization :

    Horizontal

    standard_name :

    radar_equivalent_reflectivity_factor_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • DBZH
    (time, range)
    float32
    ...

    units :

    dBZ

    long_name :

    Equivalent reflectivity factor H

    polarization :

    Horizontal

    standard_name :

    radar_equivalent_reflectivity_factor_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • VRADH
    (time, range)
    float32
    ...

    units :

    meters per seconds

    long_name :

    Radial velocity of scatterers away from instrument H

    polarization :

    Horizontal

    standard_name :

    radial_velocity_of_scatterers_away_from_instrument_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • WRADH
    (time, range)
    float32
    ...

    units :

    meters per seconds

    long_name :

    Doppler spectrum width H

    polarization :

    Horizontal

    standard_name :

    radar_doppler_spectrum_width_h

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • ZDR
    (time, range)
    float32
    ...

    units :

    dB

    long_name :

    Log differential reflectivity H/V

    polarization :

    Horizontal and Vertical

    standard_name :

    radar_differential_reflectivity_hv

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • HCLASS
    (time, range)
    float32
    ...

    units :

    long_name :

    Hydrological Classification

    polarization :

    Horizontal and Vertical

    coordinates :

    elevation azimuth range

    [359640 values with dtype=float32]

  • sweep_mode
    ()
    <U20
    ...

    [1 values with dtype=<U20]

  • scan_type
    ()
    <U3
    ...

    [1 values with dtype=<U3]

  • follow_mode
    ()
    <U7
    ...

    [1 values with dtype=<U7]

  • prt
    (time)
    float32
    ...

    units :

    seconds

    long_name :

    Pulse repetition time

    [360 values with dtype=float32]

  • prt_ratio
    (time)
    float32
    ...

    long_name :

    PRT ratio (high/low)

    [360 values with dtype=float32]

  • prt_mode
    ()
    <U9
    ...

    [1 values with dtype=<U9]

  • scan_rate
    (time)
    float32
    ...

    units :

    degrees/s

    long_name :

    Antenna scan rate

    [360 values with dtype=float32]

  • n_samples
    (time)
    int32
    ...

    long_name :

    Maximum number of samples used to compute moments

    [360 values with dtype=int32]

  • pulse_width
    (time)
    float32
    ...

    units :

    seconds

    long_name :

    Pulse width

    [360 values with dtype=float32]

  • sweep_fixed_angle
    ()
    float64
    ...

    long_name :

    Fixed angle of sweep

    units :

    degrees

    [1 values with dtype=float64]

  • sweep_number
    ()
    int64
    ...

    [1 values with dtype=int64]

  • rays_angle_resolution
    ()
    float64
    ...

    long_name :

    Angular resolution between rays

    units :

    degrees

    [1 values with dtype=float64]

• Attributes: (6)

  Content :

  This file contains one scan of remotely sensed data

  history :

  Encoded into netcdf from IRIS data

  title :

  IRIS data

  Conventions :

  FSL netCDF

  time_coverage_start :

  2022-08-22T13:52:53Z

  time_coverage_end :

  2022-08-22T13:53:28Z

open_imd_datatree — one volume

open_imd_datatree accepts either a single file path (→ single-sweep DataTree) or a list of file paths (→ one volume). Multi-file stacking is delegated to xradar.util.create_volume, which sorts sweeps by time and supports min_angle / max_angle / time_coverage_start / time_coverage_end / volume_number filtering.

help(xd.io.open_imd_datatree)

Help on function open_imd_datatree in module xradar.io.backends.imd:

open_imd_datatree(filename_or_obj, **kwargs)
    Open IMD radar file(s) as a :py:class:`xarray.DataTree`.

    IMD stores one sweep per NetCDF file. A volume is assembled from
    multiple files (typically 2-3 for long-range PPI or 9-10 for
    short-range, high-resolution PPI).

    - Single file path -> single-sweep DataTree.
    - List of file paths -> single volume DataTree. Multi-file stacking
      is delegated to :func:`xradar.util.create_volume`, which sorts
      sweeps by time and supports ``time_coverage_start``,
      ``time_coverage_end``, ``min_angle``, ``max_angle`` filtering.

    To split a directory of mixed-volume files into per-volume groups,
    use :func:`group_imd_files` first::

        for group in xd.io.group_imd_files("/data/imd"):
            dtree = xd.io.open_imd_datatree(group)

    Parameters
    ----------
    filename_or_obj : str, Path, or list/tuple of those
        Single IMD file path, or a list of paths making up one volume.

    Keyword Arguments
    -----------------
    first_dim : str
        ``"auto"`` (default) or ``"time"``.
    reindex_angle : bool or dict
        If a dict, kwargs are passed to :func:`xradar.util.reindex_angle`.
    site_as_coords : bool
        Attach station variables as coordinates on sweep Datasets.
    optional_groups : bool
        Include ``/radar_parameters``, ``/georeferencing_correction`` and
        ``/radar_calibration`` subgroups. Defaults to ``False``.
    time_coverage_start, time_coverage_end, min_angle, max_angle, volume_number
        Forwarded to :func:`xradar.util.create_volume` when multi-file
        input is provided.

    Returns
    -------
    dtree : xarray.DataTree
        CfRadial2-style DataTree with ``/`` root and ``sweep_N`` children.

Single sweep

dtree = xd.io.open_imd_datatree(filename_sweep_0)
display(dtree)

<xarray.DataTree>
Group: /
│   Dimensions:              (sweep: 1)
│   Coordinates:
│       altitude             float32 4B ...
│       latitude             float32 4B ...
│       longitude            float32 4B ...
│   Dimensions without coordinates: sweep
│   Data variables:
│       volume_number        int64 8B 0
│       platform_type        <U5 20B 'fixed'
│       instrument_type      <U5 20B 'radar'
│       time_coverage_start  <U20 80B '2022-08-22T13:52:53Z'
│       time_coverage_end    <U20 80B '2022-08-22T13:53:28Z'
│       sweep_fixed_angle    (sweep) float64 8B 0.4999
│       sweep_group_name     (sweep) <U7 28B 'sweep_0'
│   Attributes:
│       Conventions:         CF-1.8, WMO CF-1.0, ACDD-1.3
│       wmo__cf_profile:     FM 301-XX
│       version:             2.0
│       title:               IMD radar data
│       institution:         India Meteorological Department
│       references:
│       source:              IMD NetCDF
│       history:
│       comment:
│       instrument_name:
│       platform_is_mobile:  false
└── Group: /sweep_0
        Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
        Coordinates:
          * azimuth                   (azimuth) float32 1kB 0.1703 1.005 ... 358.2 359.0
            elevation                 (azimuth) float32 1kB ...
            time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:0...
          * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
          * frequency                 (frequency) float32 4B 5.625e+09
        Data variables: (12/47)
            nyquist_velocity          float32 4B ...
            unambiguous_range         float32 4B ...
            calibConst                float32 4B ...
            radarConst                float32 4B ...
            radar_beam_width_h        float32 4B ...
            radar_receiver_bandwidth  float32 4B ...
            ...                        ...
            scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
            n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
            pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
            sweep_fixed_angle         float64 8B 0.4999
            sweep_number              int64 8B 0
            rays_angle_resolution     float64 8B 1.0

xarray.DataTree

• /sweep_0(52)

  • Dimensions:
    • sweep: 1
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1703 1.005 2.148 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.702881e-01, 1.005249e+00, 2.147827e+00, ..., 3.570117e+02,3.581543e+02, 3.590167e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:53:02 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:53:02.000000000', '2022-08-22T13:53:03.000000000','2022-08-22T13:53:03.000000000', ..., '2022-08-22T13:53:02.000000000','2022-08-22T13:53:02.000000000', '2022-08-22T13:53:02.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      coordinates :

      elevation azimuth range

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      coordinates :

      elevation azimuth range

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      coordinates :

      elevation azimuth range

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      coordinates :

      elevation azimuth range

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      coordinates :

      elevation azimuth range

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      coordinates :

      elevation azimuth range

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      0.4999

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(0.49987793)

    • sweep_number
      ()
      int64
      0

      array(0)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

• Dimensions:
  • sweep: 1
• Coordinates: (3)
  • altitude
    ()
    float32
    ...

    units :

    meter

    long_name :

    Altitude of site above mean sea level

    [1 values with dtype=float32]

  • latitude
    ()
    float32
    ...

    units :

    degrees_north

    long_name :

    Latitude of site

    [1 values with dtype=float32]

  • longitude
    ()
    float32
    ...

    units :

    degrees_east

    long_name :

    Longitude of site

    [1 values with dtype=float32]

• Data variables: (7)
  • volume_number
    ()
    int64
    0

    array(0)

  • platform_type
    ()
    <U5
    'fixed'

    array('fixed', dtype='<U5')

  • instrument_type
    ()
    <U5
    'radar'

    array('radar', dtype='<U5')

  • time_coverage_start
    ()
    <U20
    '2022-08-22T13:52:53Z'

    array('2022-08-22T13:52:53Z', dtype='<U20')

  • time_coverage_end
    ()
    <U20
    '2022-08-22T13:53:28Z'

    array('2022-08-22T13:53:28Z', dtype='<U20')

  • sweep_fixed_angle
    (sweep)
    float64
    0.4999

    long_name :

    Fixed angle of sweep

    units :

    degrees

    array([0.49987793])

  • sweep_group_name
    (sweep)
    <U7
    'sweep_0'

    array(['sweep_0'], dtype='<U7')

• Attributes: (11)

  Conventions :

  CF-1.8, WMO CF-1.0, ACDD-1.3

  wmo__cf_profile :

  FM 301-XX

  version :

  2.0

  title :

  IMD radar data

  institution :

  India Meteorological Department

  references :

  source :

  IMD NetCDF

  history :

  comment :

  instrument_name :

  platform_is_mobile :

  false

Volume from multiple files

dtree = xd.io.open_imd_datatree(volume_files)
display(dtree)

<xarray.DataTree 'root'>
Group: /
│   Dimensions:              (sweep: 10)
│   Coordinates:
│       altitude             float32 4B ...
│       latitude             float32 4B ...
│       longitude            float32 4B ...
│   Dimensions without coordinates: sweep
│   Data variables:
│       volume_number        int64 8B 0
│       platform_type        <U5 20B 'fixed'
│       instrument_type      <U5 20B 'radar'
│       time_coverage_start  <U20 80B '2022-08-22T13:52:53Z'
│       time_coverage_end    <U20 80B '2022-08-22T13:58:55Z'
│       sweep_group_name     (sweep) <U7 280B 'sweep_0' 'sweep_1' ... 'sweep_9'
│       sweep_fixed_angle    (sweep) float64 80B 0.4999 0.9998 2.0 ... 16.0 21.0
│   Attributes:
│       Conventions:         CF-1.8, WMO CF-1.0, ACDD-1.3
│       wmo__cf_profile:     FM 301-XX
│       version:             2.0
│       title:               IMD radar data
│       institution:         India Meteorological Department
│       references:
│       source:              IMD NetCDF
│       history:
│       comment:
│       instrument_name:
│       platform_is_mobile:  false
│       volume_number:       0
├── Group: /sweep_0
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1703 1.005 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:0...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 0.4999
│           sweep_number              int64 8B 0
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_1
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1703 1.027 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:3...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 0.9998
│           sweep_number              int64 8B 1
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_2
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1428 1.027 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:54:1...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 2.0
│           sweep_number              int64 8B 2
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_3
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1483 1.005 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:54:4...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 2.999
│           sweep_number              int64 8B 3
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_4
│       Dimensions:                   (azimuth: 356, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1593 1.016 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:55:2...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 4.499
│           sweep_number              int64 8B 4
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_5
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1648 1.016 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:55:5...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 5.999
│           sweep_number              int64 8B 5
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_6
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1483 1.033 ... 358.1 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:56:3...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 8.998
│           sweep_number              int64 8B 6
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_7
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1648 1.016 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:57:0...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 12.0
│           sweep_number              int64 8B 7
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_8
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1703 1.027 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:57:4...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 16.0
│           sweep_number              int64 8B 8
│           rays_angle_resolution     float64 8B 1.0
└── Group: /sweep_9
        Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
        Coordinates:
          * azimuth                   (azimuth) float32 1kB 0.1373 1.022 ... 358.1 359.0
            elevation                 (azimuth) float32 1kB ...
            time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:58:5...
          * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
          * frequency                 (frequency) float32 4B 5.625e+09
        Data variables: (12/47)
            nyquist_velocity          float32 4B ...
            unambiguous_range         float32 4B ...
            calibConst                float32 4B ...
            radarConst                float32 4B ...
            radar_beam_width_h        float32 4B ...
            radar_receiver_bandwidth  float32 4B ...
            ...                        ...
            scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
            n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
            pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
            sweep_fixed_angle         float64 8B 21.0
            sweep_number              int64 8B 9
            rays_angle_resolution     float64 8B 1.0

xarray.DataTree

'root'

• /sweep_0(52)

  • Dimensions:
    • sweep: 10
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1703 1.005 2.148 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.702881e-01, 1.005249e+00, 2.147827e+00, ..., 3.570117e+02,3.581543e+02, 3.590167e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:53:02 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:53:02.000000000', '2022-08-22T13:53:03.000000000','2022-08-22T13:53:03.000000000', ..., '2022-08-22T13:53:02.000000000','2022-08-22T13:53:02.000000000', '2022-08-22T13:53:02.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      0.4999

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(0.49987793)

    • sweep_number
      ()
      int64
      0

      array(0)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_1(52)

  • Dimensions:
    • sweep: 10
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1703 1.027 2.164 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.702881e-01, 1.027222e+00, 2.164307e+00, ..., 3.570172e+02,3.581653e+02, 3.590222e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:53:38 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:53:38.000000000', '2022-08-22T13:53:38.000000000','2022-08-22T13:53:38.000000000', ..., '2022-08-22T13:53:37.000000000','2022-08-22T13:53:37.000000000', '2022-08-22T13:53:37.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      0.9998

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(0.99975586)

    • sweep_number
      ()
      int64
      1

      array(1)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_2(52)

  • Dimensions:
    • sweep: 10
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1428 1.027 2.17 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.428223e-01, 1.027222e+00, 2.169800e+00, ..., 3.570282e+02,3.581653e+02, 3.590222e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:54:14 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:54:14.000000000', '2022-08-22T13:54:14.000000000','2022-08-22T13:54:14.000000000', ..., '2022-08-22T13:54:13.000000000','2022-08-22T13:54:13.000000000', '2022-08-22T13:54:13.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      2.0

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(1.99951172)

    • sweep_number
      ()
      int64
      2

      array(2)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_3(52)

  • Dimensions:
    • sweep: 10
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1483 1.005 2.159 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.483154e-01, 1.005249e+00, 2.158813e+00, ..., 3.570447e+02,3.581653e+02, 3.590057e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:54:49 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:54:49.000000000', '2022-08-22T13:54:49.000000000','2022-08-22T13:54:49.000000000', ..., '2022-08-22T13:54:48.000000000','2022-08-22T13:54:48.000000000', '2022-08-22T13:54:48.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      2.999

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(2.99926758)

    • sweep_number
      ()
      int64
      3

      array(3)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_4(52)

  • Too many items to display (display_max_html_elements exceeded)

  /sweep_5(52)

  • Too many items to display (display_max_html_elements exceeded)

  /sweep_6(52)

  • Too many items to display (display_max_html_elements exceeded)

  /sweep_7(52)

  • Too many items to display (display_max_html_elements exceeded)

  /sweep_8(52)

  • Too many items to display (display_max_html_elements exceeded)

  /sweep_9(52)

  • Too many items to display (display_max_html_elements exceeded)
• Dimensions:
  • sweep: 10
• Coordinates: (3)
  • altitude
    ()
    float32
    ...

    units :

    meter

    long_name :

    Altitude of site above mean sea level

    [1 values with dtype=float32]

  • latitude
    ()
    float32
    ...

    units :

    degrees_north

    long_name :

    Latitude of site

    [1 values with dtype=float32]

  • longitude
    ()
    float32
    ...

    units :

    degrees_east

    long_name :

    Longitude of site

    [1 values with dtype=float32]

• Data variables: (7)
  • volume_number
    ()
    int64
    0

    array(0)

  • platform_type
    ()
    <U5
    'fixed'

    array('fixed', dtype='<U5')

  • instrument_type
    ()
    <U5
    'radar'

    array('radar', dtype='<U5')

  • time_coverage_start
    ()
    <U20
    '2022-08-22T13:52:53Z'

    array('2022-08-22T13:52:53Z', dtype='<U20')

  • time_coverage_end
    ()
    <U20
    '2022-08-22T13:58:55Z'

    array('2022-08-22T13:58:55Z', dtype='<U20')

  • sweep_group_name
    (sweep)
    <U7
    'sweep_0' 'sweep_1' ... 'sweep_9'

    array(['sweep_0', 'sweep_1', 'sweep_2', 'sweep_3', 'sweep_4', 'sweep_5',
           'sweep_6', 'sweep_7', 'sweep_8', 'sweep_9'], dtype='<U7')

  • sweep_fixed_angle
    (sweep)
    float64
    0.4999 0.9998 2.0 ... 16.0 21.0

    array([ 0.49987793,  0.99975586,  1.99951172,  2.99926758,  4.49890137,
            5.99853516,  8.99780273, 12.00256348, 16.00158691, 21.00036621])

• Attributes: (12)

  Conventions :

  CF-1.8, WMO CF-1.0, ACDD-1.3

  wmo__cf_profile :

  FM 301-XX

  version :

  2.0

  title :

  IMD radar data

  institution :

  India Meteorological Department

  references :

  source :

  IMD NetCDF

  history :

  comment :

  instrument_name :

  platform_is_mobile :

  false

  volume_number :

  0

Plot a georeferenced PPI

import matplotlib.pyplot as plt

sweep = dtree["sweep_0"].to_dataset(inherit="all_coords")
sweep = sweep.sel(range=slice(0, 150000))
sweep = xd.georeference.get_x_y_z(sweep)
sweep.DBZH.plot(x="x", y="y")
plt.title("IMD Jaipur S-band DBZH")
plt.gca().set_aspect("equal")

Filter by elevation angle

dtree = xd.io.open_imd_datatree(volume_files, max_angle=5.0)
display(dtree)

<xarray.DataTree 'root'>
Group: /
│   Dimensions:              (sweep: 5)
│   Coordinates:
│       altitude             float32 4B ...
│       latitude             float32 4B ...
│       longitude            float32 4B ...
│   Dimensions without coordinates: sweep
│   Data variables:
│       volume_number        int64 8B 0
│       platform_type        <U5 20B 'fixed'
│       instrument_type      <U5 20B 'radar'
│       time_coverage_start  <U20 80B '2022-08-22T13:52:53Z'
│       time_coverage_end    <U20 80B '2022-08-22T13:55:53Z'
│       sweep_group_name     (sweep) <U7 140B 'sweep_0' 'sweep_1' ... 'sweep_4'
│       sweep_fixed_angle    (sweep) float64 40B 0.4999 0.9998 2.0 2.999 4.499
│   Attributes:
│       Conventions:         CF-1.8, WMO CF-1.0, ACDD-1.3
│       wmo__cf_profile:     FM 301-XX
│       version:             2.0
│       title:               IMD radar data
│       institution:         India Meteorological Department
│       references:
│       source:              IMD NetCDF
│       history:
│       comment:
│       instrument_name:
│       platform_is_mobile:  false
│       volume_number:       0
├── Group: /sweep_0
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1703 1.005 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:0...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 0.4999
│           sweep_number              int64 8B 0
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_1
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1703 1.027 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:3...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 0.9998
│           sweep_number              int64 8B 1
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_2
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1428 1.027 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:54:1...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 2.0
│           sweep_number              int64 8B 2
│           rays_angle_resolution     float64 8B 1.0
├── Group: /sweep_3
│       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│       Coordinates:
│         * azimuth                   (azimuth) float32 1kB 0.1483 1.005 ... 358.2 359.0
│           elevation                 (azimuth) float32 1kB ...
│           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:54:4...
│         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│         * frequency                 (frequency) float32 4B 5.625e+09
│       Data variables: (12/47)
│           nyquist_velocity          float32 4B ...
│           unambiguous_range         float32 4B ...
│           calibConst                float32 4B ...
│           radarConst                float32 4B ...
│           radar_beam_width_h        float32 4B ...
│           radar_receiver_bandwidth  float32 4B ...
│           ...                        ...
│           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│           sweep_fixed_angle         float64 8B 2.999
│           sweep_number              int64 8B 3
│           rays_angle_resolution     float64 8B 1.0
└── Group: /sweep_4
        Dimensions:                   (azimuth: 356, range: 999, frequency: 1)
        Coordinates:
          * azimuth                   (azimuth) float32 1kB 0.1593 1.016 ... 358.2 359.0
            elevation                 (azimuth) float32 1kB ...
            time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:55:2...
          * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
          * frequency                 (frequency) float32 4B 5.625e+09
        Data variables: (12/47)
            nyquist_velocity          float32 4B ...
            unambiguous_range         float32 4B ...
            calibConst                float32 4B ...
            radarConst                float32 4B ...
            radar_beam_width_h        float32 4B ...
            radar_receiver_bandwidth  float32 4B ...
            ...                        ...
            scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
            n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
            pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
            sweep_fixed_angle         float64 8B 4.499
            sweep_number              int64 8B 4
            rays_angle_resolution     float64 8B 1.0

xarray.DataTree

'root'

• /sweep_0(52)

  • Dimensions:
    • sweep: 5
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1703 1.005 2.148 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.702881e-01, 1.005249e+00, 2.147827e+00, ..., 3.570117e+02,3.581543e+02, 3.590167e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:53:02 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:53:02.000000000', '2022-08-22T13:53:03.000000000','2022-08-22T13:53:03.000000000', ..., '2022-08-22T13:53:02.000000000','2022-08-22T13:53:02.000000000', '2022-08-22T13:53:02.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      0.4999

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(0.49987793)

    • sweep_number
      ()
      int64
      0

      array(0)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_1(52)

  • Dimensions:
    • sweep: 5
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1703 1.027 2.164 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.702881e-01, 1.027222e+00, 2.164307e+00, ..., 3.570172e+02,3.581653e+02, 3.590222e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:53:38 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:53:38.000000000', '2022-08-22T13:53:38.000000000','2022-08-22T13:53:38.000000000', ..., '2022-08-22T13:53:37.000000000','2022-08-22T13:53:37.000000000', '2022-08-22T13:53:37.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      0.9998

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(0.99975586)

    • sweep_number
      ()
      int64
      1

      array(1)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_2(52)

  • Dimensions:
    • sweep: 5
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1428 1.027 2.17 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.428223e-01, 1.027222e+00, 2.169800e+00, ..., 3.570282e+02,3.581653e+02, 3.590222e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:54:14 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:54:14.000000000', '2022-08-22T13:54:14.000000000','2022-08-22T13:54:14.000000000', ..., '2022-08-22T13:54:13.000000000','2022-08-22T13:54:13.000000000', '2022-08-22T13:54:13.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      2.0

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(1.99951172)

    • sweep_number
      ()
      int64
      2

      array(2)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_3(52)

  • Dimensions:
    • sweep: 5
    • azimuth: 360
    • range: 999
    • frequency: 1
  • Coordinates: (5)
    • azimuth
      (azimuth)
      float32
      0.1483 1.005 2.159 ... 358.2 359.0

      units :

      degrees

      standard_name :

      sensor_to_target_azimuth_angle

      long_name :

      Azimuth angle from true north

      axis :

      radial_azimuth_coordinate

      array([1.483154e-01, 1.005249e+00, 2.158813e+00, ..., 3.570447e+02,3.581653e+02, 3.590057e+02], shape=(360,), dtype=float32)

    • elevation
      (azimuth)
      float32
      ...

      units :

      degrees

      standard_name :

      sensor_to_target_elevation_angle

      long_name :

      Elevation angle from horizontal plane

      axis :

      radial_elevation_coordinate

      [360 values with dtype=float32]

    • time
      (azimuth)
      datetime64[ns]
      2022-08-22T13:54:49 ... 2022-08-...

      long_name :

      Time of radial

      array(['2022-08-22T13:54:49.000000000', '2022-08-22T13:54:49.000000000','2022-08-22T13:54:49.000000000', ..., '2022-08-22T13:54:48.000000000','2022-08-22T13:54:48.000000000', '2022-08-22T13:54:48.000000000'],shape=(360,), dtype='datetime64[ns]')

    • range
      (range)
      float64
      300.0 550.0 ... 2.496e+05 2.498e+05

      units :

      meters

      standard_name :

      projection_range_coordinate

      long_name :

      range_to_measurement_volume

      axis :

      radial_range_coordinate

      spacing_is_constant :

      true

      meters_to_center_of_first_gate :

      300.0

      meters_between_gates :

      250.0

      array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

    • frequency
      (frequency)
      float32
      5.625e+09

      units :

      s-1

      standard_name :

      radiation_frequency

      long_name :

      Radiation frequency

      array([5.624624e+09], dtype=float32)

  • Data variables: (47)
    • nyquist_velocity
      ()
      float32
      ...

      units :

      meter/second

      long_name :

      Nyquist velocity

      [1 values with dtype=float32]

    • unambiguous_range
      ()
      float32
      ...

      units :

      kilometer

      long_name :

      Unambiguous range

      [1 values with dtype=float32]

    • calibConst
      ()
      float32
      ...

      units :

      dB

      long_name :

      System gain calibration constant

      [1 values with dtype=float32]

    • radarConst
      ()
      float32
      ...

      units :

      long_name :

      Radar Constant

      [1 values with dtype=float32]

    • radar_beam_width_h
      ()
      float32
      ...

      units :

      degrees

      long_name :

      Horizontal Beam Width

      [1 values with dtype=float32]

    • radar_receiver_bandwidth
      ()
      float32
      ...

      units :

      hertz

      long_name :

      Band Width

      [1 values with dtype=float32]

    • filterDop
      ()
      int16
      ...

      long_name :

      Ground clutter filter information

      [1 values with dtype=int16]

    • dwellTime
      ()
      float32
      ...

      units :

      millisecond

      long_name :

      Dwell time of pulses

      [1 values with dtype=float32]

    • calI0
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Intercept of fit line with Noise Level

      [1 values with dtype=float32]

    • calNoise
      ()
      float32
      ...

      units :

      dBm

      long_name :

      Calibration Noise

      [1 values with dtype=float32]

    • altitude_agl
      ()
      float32
      ...

      units :

      meter

      long_name :

      Radar Site,Ground Height

      [1 values with dtype=float32]

    • meltHeight
      ()
      float32
      ...

      units :

      meter

      long_name :

      Melting Layer Height

      [1 values with dtype=float32]

    • logNoise
      ()
      float32
      ...

      units :

      long_name :

      LOG Channel Noise

      [1 values with dtype=float32]

    • linNoise
      ()
      float32
      ...

      units :

      long_name :

      Linearized LOG Power Noise

      [1 values with dtype=float32]

    • inphaseOffset
      ()
      float32
      ...

      units :

      long_name :

      Inphase Offset

      [1 values with dtype=float32]

    • quadratureOffset
      ()
      float32
      ...

      units :

      long_name :

      Quadrature Offset

      [1 values with dtype=float32]

    • logSlope
      ()
      float32
      ...

      units :

      long_name :

      LOG conversion Slope

      [1 values with dtype=float32]

    • logFilter
      ()
      int32
      ...

      units :

      long_name :

      Log filter used on first bin

      [1 values with dtype=int32]

    • filterPntClt
      ()
      int32
      ...

      units :

      long_name :

      Side skip in low 4 bits, 0=feature off

      [1 values with dtype=int32]

    • filterThreshold
      ()
      float32
      ...

      units :

      dB

      long_name :

      Point Clutter Threshold

      [1 values with dtype=float32]

    • SQIThresh
      ()
      float32
      ...

      long_name :

      Signal Quality Index Threshold

      [1 values with dtype=float32]

    • LOGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      LOG noise threshold

      [1 values with dtype=float32]

    • SIGThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Signal power threshold

      [1 values with dtype=float32]

    • CSRThresh
      ()
      float32
      ...

      units :

      dB

      long_name :

      Clutter Correction threshold

      [1 values with dtype=float32]

    • DBTThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

      [1 values with dtype=int32]

    • DBZThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Corrected Z flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • VELThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Velocity flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • WIDThreshFlag
      ()
      int32
      ...

      units :

      long_name :

      Spectral Width flags. see also DBTThreshFlag.

      [1 values with dtype=int32]

    • radar_beam_width_v
      ()
      float32
      ...

      units :

      degree

      long_name :

      Vertical Beam Width

      [1 values with dtype=float32]

    • DBTH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Total power H (uncorrected reflectivity)

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • DBZH
      (azimuth, range)
      float32
      ...

      units :

      dBZ

      long_name :

      Equivalent reflectivity factor H

      polarization :

      Horizontal

      standard_name :

      radar_equivalent_reflectivity_factor_h

      [359640 values with dtype=float32]

    • VRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Radial velocity of scatterers away from instrument H

      polarization :

      Horizontal

      standard_name :

      radial_velocity_of_scatterers_away_from_instrument_h

      [359640 values with dtype=float32]

    • WRADH
      (azimuth, range)
      float32
      ...

      units :

      meters per seconds

      long_name :

      Doppler spectrum width H

      polarization :

      Horizontal

      standard_name :

      radar_doppler_spectrum_width_h

      [359640 values with dtype=float32]

    • ZDR
      (azimuth, range)
      float32
      ...

      units :

      dB

      long_name :

      Log differential reflectivity H/V

      polarization :

      Horizontal and Vertical

      standard_name :

      radar_differential_reflectivity_hv

      [359640 values with dtype=float32]

    • HCLASS
      (azimuth, range)
      float32
      ...

      units :

      long_name :

      Hydrological Classification

      polarization :

      Horizontal and Vertical

      [359640 values with dtype=float32]

    • sweep_mode
      ()
      <U20
      'azimuth_surveillance'

      array('azimuth_surveillance', dtype='<U20')

    • scan_type
      ()
      <U3
      'ppi'

      array('ppi', dtype='<U3')

    • follow_mode
      ()
      <U7
      'not_set'

      array('not_set', dtype='<U7')

    • prt
      (azimuth)
      float32
      0.001667 0.001667 ... 0.001667

      units :

      seconds

      long_name :

      Pulse repetition time

      array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

    • prt_ratio
      (azimuth)
      float32
      1.333 1.333 1.333 ... 1.333 1.333

      long_name :

      PRT ratio (high/low)

      array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

    • prt_mode
      ()
      <U9
      'staggered'

      array('staggered', dtype='<U9')

    • scan_rate
      (azimuth)
      float32
      10.18 10.18 10.18 ... 10.18 10.18

      units :

      degrees/s

      long_name :

      Antenna scan rate

      array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

    • n_samples
      (azimuth)
      int32
      42 42 42 42 42 ... 42 42 42 42 42

      long_name :

      Maximum number of samples used to compute moments

      array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

    • pulse_width
      (azimuth)
      float32
      1e-06 1e-06 1e-06 ... 1e-06 1e-06

      units :

      seconds

      long_name :

      Pulse width

      array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

    • sweep_fixed_angle
      ()
      float64
      2.999

      long_name :

      Fixed angle of sweep

      units :

      degrees

      array(2.99926758)

    • sweep_number
      ()
      int64
      3

      array(3)

    • rays_angle_resolution
      ()
      float64
      1.0

      long_name :

      Angular resolution between rays

      units :

      degrees

      array(1.)

  /sweep_4(52)

  • Too many items to display (display_max_html_elements exceeded)
• Dimensions:
  • sweep: 5
• Coordinates: (3)
  • altitude
    ()
    float32
    ...

    units :

    meter

    long_name :

    Altitude of site above mean sea level

    [1 values with dtype=float32]

  • latitude
    ()
    float32
    ...

    units :

    degrees_north

    long_name :

    Latitude of site

    [1 values with dtype=float32]

  • longitude
    ()
    float32
    ...

    units :

    degrees_east

    long_name :

    Longitude of site

    [1 values with dtype=float32]

• Data variables: (7)
  • volume_number
    ()
    int64
    0

    array(0)

  • platform_type
    ()
    <U5
    'fixed'

    array('fixed', dtype='<U5')

  • instrument_type
    ()
    <U5
    'radar'

    array('radar', dtype='<U5')

  • time_coverage_start
    ()
    <U20
    '2022-08-22T13:52:53Z'

    array('2022-08-22T13:52:53Z', dtype='<U20')

  • time_coverage_end
    ()
    <U20
    '2022-08-22T13:55:53Z'

    array('2022-08-22T13:55:53Z', dtype='<U20')

  • sweep_group_name
    (sweep)
    <U7
    'sweep_0' 'sweep_1' ... 'sweep_4'

    array(['sweep_0', 'sweep_1', 'sweep_2', 'sweep_3', 'sweep_4'], dtype='<U7')

  • sweep_fixed_angle
    (sweep)
    float64
    0.4999 0.9998 2.0 2.999 4.499

    array([0.49987793, 0.99975586, 1.99951172, 2.99926758, 4.49890137])

• Attributes: (12)

  Conventions :

  CF-1.8, WMO CF-1.0, ACDD-1.3

  wmo__cf_profile :

  FM 301-XX

  version :

  2.0

  title :

  IMD radar data

  institution :

  India Meteorological Department

  references :

  source :

  IMD NetCDF

  history :

  comment :

  instrument_name :

  platform_is_mobile :

  false

  volume_number :

  0

group_imd_files — split a mixed directory

A single directory usually holds many volumes back-to-back. Use group_imd_files to split a directory (or glob, or list) into per-volume file lists by filename stem:

help(xd.io.group_imd_files)

Help on function group_imd_files in module xradar.io.backends.imd:

group_imd_files(paths)
    Group IMD sweep files into volumes by filename stem.

    IMD distributes one sweep per file. Files of a single volume share a
    common stem ending in ``.nc``; additional sweeps in the same volume
    get numeric suffixes::

        GOA210515003646-IMD-C.nc        <- sweep 0
        GOA210515003646-IMD-C.nc.1      <- sweep 1
        ...
        GOA210515003646-IMD-C.nc.9      <- sweep 9

    A new volume changes the timestamp component of the stem.

    Parameters
    ----------
    paths : str, Path, or iterable of those
        * A directory path -- all IMD files inside are grouped.
        * A glob pattern string -- files matching the glob are grouped.
        * An iterable of file paths -- grouped as-is.

    Returns
    -------
    list[list[str]]
        One list of absolute paths per detected volume, inner lists in
        sweep order (``.nc``, ``.nc.1``, ...).

    Examples
    --------
    >>> import xradar as xd
    >>> for group in xd.io.group_imd_files("/data/goa"):       # doctest: +SKIP
    ...     dtree = xd.io.open_imd_datatree(group)

xd.io.group_imd_files(volume_files)

[['/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.1',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.2',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.3',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.4',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.5',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.6',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.7',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.8',
  '/home/docs/.cache/open-radar-data/IMD/JPR220822135253-IMD-B.nc.9']]

Typical loop pattern over a directory of many volumes:

for files in xd.io.group_imd_files("/data/imd"):
    dtree = xd.io.open_imd_datatree(files)
    # ... process this volume ...

open_imd_volumes — all volumes in one DataTree

open_imd_volumes opens every volume in a directory at once and nests them under zero-padded vcp_NN child nodes (VCP = volume coverage pattern). The padding width is chosen so the child names sort lexically:

/
├── vcp_00/
│   ├── (root: sweep_group_name, sweep_fixed_angle, ...)
│   ├── sweep_0
│   ├── sweep_1
│   └── ...
├── vcp_01/
└── ...

All open_imd_datatree kwargs (first_dim, reindex_angle, optional_groups, min_angle/max_angle, …) are forwarded and applied per volume.

help(xd.io.open_imd_volumes)

Help on function open_imd_volumes in module xradar.io.backends.imd:

open_imd_volumes(paths, **kwargs)
    Open a directory of IMD files as a multi-volume :py:class:`xarray.DataTree`.

    Groups files by filename stem via :func:`group_imd_files`, opens each
    group as a CfRadial2 volume via :func:`open_imd_datatree`, and nests
    them under zero-padded ``vcp_NN`` child nodes of a parent root.
    ``vcp`` stands for *volume coverage pattern*. Padding width is chosen
    so the child names sort lexically (e.g. 121 volumes -> ``vcp_000`` ..
    ``vcp_120``).

    Parameters
    ----------
    paths : str, Path, or iterable of those
        Same as :func:`group_imd_files`: directory, glob, or list.

    Keyword Arguments
    -----------------
    All kwargs are forwarded to :func:`open_imd_datatree` (applied per
    volume). Typical: ``first_dim``, ``reindex_angle``, ``site_as_coords``,
    ``optional_groups``, ``min_angle``, ``max_angle``.

    Returns
    -------
    dtree : xarray.DataTree
        Root with ``vcp_NN`` children, each a full CfRadial2 volume tree::

            /
            ├── vcp_00/
            │   ├── (root: sweep_group_name, sweep_fixed_angle, ...)
            │   ├── sweep_0
            │   ├── sweep_1
            │   └── ...
            ├── vcp_01/
            └── ...

    Examples
    --------
    >>> import xradar as xd
    >>> tree = xd.io.open_imd_volumes("/data/JPR220822IMD-B")   # doctest: +SKIP
    >>> tree["vcp_00/sweep_0"].ds["DBZH"]                       # doctest: +SKIP

volume_files_2 = [
    DATASETS.fetch(f"IMD/JPR220822140253-IMD-B.nc{s}")
    for s in ["", ".1", ".2", ".3", ".4", ".5", ".6", ".7", ".8", ".9"]
]
tree = xd.io.open_imd_volumes(volume_files + volume_files_2)
display(tree)

Downloading file 'IMD/JPR220822140253-IMD-B.nc' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.1' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.1' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.2' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.2' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.3' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.3' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.4' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.4' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.5' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.5' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.6' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.6' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.7' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.7' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.8' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.8' to '/home/docs/.cache/open-radar-data'.

Downloading file 'IMD/JPR220822140253-IMD-B.nc.9' from 'https://github.com/openradar/open-radar-data/raw/main/data/IMD/JPR220822140253-IMD-B.nc.9' to '/home/docs/.cache/open-radar-data'.

<xarray.DataTree>
Group: /
│   Attributes:
│       Conventions:  Cf/Radial
│       institution:  India Meteorological Department
│       source:       IMD NetCDF
│       title:        IMD multi-volume dataset (2 volumes)
├── Group: /vcp_00
│   │   Dimensions:              (sweep: 10)
│   │   Coordinates:
│   │       altitude             float32 4B ...
│   │       latitude             float32 4B ...
│   │       longitude            float32 4B ...
│   │   Dimensions without coordinates: sweep
│   │   Data variables:
│   │       volume_number        int64 8B 0
│   │       platform_type        <U5 20B 'fixed'
│   │       instrument_type      <U5 20B 'radar'
│   │       time_coverage_start  <U20 80B '2022-08-22T13:52:53Z'
│   │       time_coverage_end    <U20 80B '2022-08-22T13:58:55Z'
│   │       sweep_group_name     (sweep) <U7 280B 'sweep_0' 'sweep_1' ... 'sweep_9'
│   │       sweep_fixed_angle    (sweep) float64 80B 0.4999 0.9998 2.0 ... 16.0 21.0
│   │   Attributes:
│   │       Conventions:         CF-1.8, WMO CF-1.0, ACDD-1.3
│   │       wmo__cf_profile:     FM 301-XX
│   │       version:             2.0
│   │       title:               IMD radar data
│   │       institution:         India Meteorological Department
│   │       references:
│   │       source:              IMD NetCDF
│   │       history:
│   │       comment:
│   │       instrument_name:
│   │       platform_is_mobile:  false
│   │       volume_number:       0
│   ├── Group: /vcp_00/sweep_0
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1703 1.005 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:0...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 0.4999
│   │           sweep_number              int64 8B 0
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_1
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1703 1.027 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:3...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 0.9998
│   │           sweep_number              int64 8B 1
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_2
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1428 1.027 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:54:1...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 2.0
│   │           sweep_number              int64 8B 2
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_3
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1483 1.005 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:54:4...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 2.999
│   │           sweep_number              int64 8B 3
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_4
│   │       Dimensions:                   (azimuth: 356, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1593 1.016 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:55:2...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 4.499
│   │           sweep_number              int64 8B 4
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_5
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1648 1.016 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:55:5...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 5.999
│   │           sweep_number              int64 8B 5
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_6
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1483 1.033 ... 358.1 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:56:3...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 8.998
│   │           sweep_number              int64 8B 6
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_7
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1648 1.016 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:57:0...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 12.0
│   │           sweep_number              int64 8B 7
│   │           rays_angle_resolution     float64 8B 1.0
│   ├── Group: /vcp_00/sweep_8
│   │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│   │       Coordinates:
│   │         * azimuth                   (azimuth) float32 1kB 0.1703 1.027 ... 358.2 359.0
│   │           elevation                 (azimuth) float32 1kB ...
│   │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:57:4...
│   │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│   │         * frequency                 (frequency) float32 4B 5.625e+09
│   │       Data variables: (12/47)
│   │           nyquist_velocity          float32 4B ...
│   │           unambiguous_range         float32 4B ...
│   │           calibConst                float32 4B ...
│   │           radarConst                float32 4B ...
│   │           radar_beam_width_h        float32 4B ...
│   │           radar_receiver_bandwidth  float32 4B ...
│   │           ...                        ...
│   │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│   │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│   │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│   │           sweep_fixed_angle         float64 8B 16.0
│   │           sweep_number              int64 8B 8
│   │           rays_angle_resolution     float64 8B 1.0
│   └── Group: /vcp_00/sweep_9
│           Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
│           Coordinates:
│             * azimuth                   (azimuth) float32 1kB 0.1373 1.022 ... 358.1 359.0
│               elevation                 (azimuth) float32 1kB ...
│               time                      (azimuth) datetime64[ns] 3kB 2022-08-22T13:58:5...
│             * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
│             * frequency                 (frequency) float32 4B 5.625e+09
│           Data variables: (12/47)
│               nyquist_velocity          float32 4B ...
│               unambiguous_range         float32 4B ...
│               calibConst                float32 4B ...
│               radarConst                float32 4B ...
│               radar_beam_width_h        float32 4B ...
│               radar_receiver_bandwidth  float32 4B ...
│               ...                        ...
│               scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
│               n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
│               pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
│               sweep_fixed_angle         float64 8B 21.0
│               sweep_number              int64 8B 9
│               rays_angle_resolution     float64 8B 1.0
└── Group: /vcp_01
    │   Dimensions:              (sweep: 10)
    │   Coordinates:
    │       altitude             float32 4B ...
    │       latitude             float32 4B ...
    │       longitude            float32 4B ...
    │   Dimensions without coordinates: sweep
    │   Data variables:
    │       volume_number        int64 8B 0
    │       platform_type        <U5 20B 'fixed'
    │       instrument_type      <U5 20B 'radar'
    │       time_coverage_start  <U20 80B '2022-08-22T14:02:53Z'
    │       time_coverage_end    <U20 80B '2022-08-22T14:08:55Z'
    │       sweep_group_name     (sweep) <U7 280B 'sweep_0' 'sweep_1' ... 'sweep_9'
    │       sweep_fixed_angle    (sweep) float64 80B 0.4999 0.9998 2.0 ... 16.0 21.0
    │   Attributes:
    │       Conventions:         CF-1.8, WMO CF-1.0, ACDD-1.3
    │       wmo__cf_profile:     FM 301-XX
    │       version:             2.0
    │       title:               IMD radar data
    │       institution:         India Meteorological Department
    │       references:
    │       source:              IMD NetCDF
    │       history:
    │       comment:
    │       instrument_name:
    │       platform_is_mobile:  false
    │       volume_number:       0
    ├── Group: /vcp_01/sweep_0
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1538 1.005 ... 358.1 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:03:2...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 0.4999
    │           sweep_number              int64 8B 0
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_1
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1538 1.005 ... 358.2 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:04:0...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 0.9998
    │           sweep_number              int64 8B 1
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_2
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1593 0.9998 ... 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:04:3...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 2.0
    │           sweep_number              int64 8B 2
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_3
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1813 1.033 ... 358.2 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:05:1...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 2.999
    │           sweep_number              int64 8B 3
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_4
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1648 1.016 ... 358.2 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:05:4...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 4.499
    │           sweep_number              int64 8B 4
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_5
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1483 1.016 ... 358.1 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:06:2...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 5.999
    │           sweep_number              int64 8B 5
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_6
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1593 1.011 ... 358.1 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:06:5...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 8.998
    │           sweep_number              int64 8B 6
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_7
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1703 1.027 ... 358.2 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:07:3...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 12.0
    │           sweep_number              int64 8B 7
    │           rays_angle_resolution     float64 8B 1.0
    ├── Group: /vcp_01/sweep_8
    │       Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
    │       Coordinates:
    │         * azimuth                   (azimuth) float32 1kB 0.1483 1.027 ... 358.2 359.0
    │           elevation                 (azimuth) float32 1kB ...
    │           time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:08:0...
    │         * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
    │         * frequency                 (frequency) float32 4B 5.625e+09
    │       Data variables: (12/47)
    │           nyquist_velocity          float32 4B ...
    │           unambiguous_range         float32 4B ...
    │           calibConst                float32 4B ...
    │           radarConst                float32 4B ...
    │           radar_beam_width_h        float32 4B ...
    │           radar_receiver_bandwidth  float32 4B ...
    │           ...                        ...
    │           scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
    │           n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
    │           pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
    │           sweep_fixed_angle         float64 8B 16.0
    │           sweep_number              int64 8B 8
    │           rays_angle_resolution     float64 8B 1.0
    └── Group: /vcp_01/sweep_9
            Dimensions:                   (azimuth: 360, range: 999, frequency: 1)
            Coordinates:
              * azimuth                   (azimuth) float32 1kB 0.1538 1.011 ... 358.2 359.0
                elevation                 (azimuth) float32 1kB ...
                time                      (azimuth) datetime64[ns] 3kB 2022-08-22T14:08:4...
              * range                     (range) float64 8kB 300.0 550.0 ... 2.498e+05
              * frequency                 (frequency) float32 4B 5.625e+09
            Data variables: (12/47)
                nyquist_velocity          float32 4B ...
                unambiguous_range         float32 4B ...
                calibConst                float32 4B ...
                radarConst                float32 4B ...
                radar_beam_width_h        float32 4B ...
                radar_receiver_bandwidth  float32 4B ...
                ...                        ...
                scan_rate                 (azimuth) float32 1kB 10.18 10.18 ... 10.18 10.18
                n_samples                 (azimuth) int32 1kB 42 42 42 42 42 ... 42 42 42 42
                pulse_width               (azimuth) float32 1kB 1e-06 1e-06 ... 1e-06 1e-06
                sweep_fixed_angle         float64 8B 21.0
                sweep_number              int64 8B 9
                rays_angle_resolution     float64 8B 1.0

xarray.DataTree

• /vcp_00(542)

  • /vcp_00/sweep_0(52)

    • Dimensions:
      • sweep: 10
      • azimuth: 360
      • range: 999
      • frequency: 1
    • Coordinates: (5)
      • azimuth
        (azimuth)
        float32
        0.1703 1.005 2.148 ... 358.2 359.0

        units :

        degrees

        standard_name :

        sensor_to_target_azimuth_angle

        long_name :

        Azimuth angle from true north

        axis :

        radial_azimuth_coordinate

        array([1.702881e-01, 1.005249e+00, 2.147827e+00, ..., 3.570117e+02,3.581543e+02, 3.590167e+02], shape=(360,), dtype=float32)

      • elevation
        (azimuth)
        float32
        ...

        units :

        degrees

        standard_name :

        sensor_to_target_elevation_angle

        long_name :

        Elevation angle from horizontal plane

        axis :

        radial_elevation_coordinate

        [360 values with dtype=float32]

      • time
        (azimuth)
        datetime64[ns]
        2022-08-22T13:53:02 ... 2022-08-...

        long_name :

        Time of radial

        array(['2022-08-22T13:53:02.000000000', '2022-08-22T13:53:03.000000000','2022-08-22T13:53:03.000000000', ..., '2022-08-22T13:53:02.000000000','2022-08-22T13:53:02.000000000', '2022-08-22T13:53:02.000000000'],shape=(360,), dtype='datetime64[ns]')

      • range
        (range)
        float64
        300.0 550.0 ... 2.496e+05 2.498e+05

        units :

        meters

        standard_name :

        projection_range_coordinate

        long_name :

        range_to_measurement_volume

        axis :

        radial_range_coordinate

        spacing_is_constant :

        true

        meters_to_center_of_first_gate :

        300.0

        meters_between_gates :

        250.0

        array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

      • frequency
        (frequency)
        float32
        5.625e+09

        units :

        s-1

        standard_name :

        radiation_frequency

        long_name :

        Radiation frequency

        array([5.624624e+09], dtype=float32)

    • Data variables: (47)
      • nyquist_velocity
        ()
        float32
        ...

        units :

        meter/second

        long_name :

        Nyquist velocity

        [1 values with dtype=float32]

      • unambiguous_range
        ()
        float32
        ...

        units :

        kilometer

        long_name :

        Unambiguous range

        [1 values with dtype=float32]

      • calibConst
        ()
        float32
        ...

        units :

        dB

        long_name :

        System gain calibration constant

        [1 values with dtype=float32]

      • radarConst
        ()
        float32
        ...

        units :

        long_name :

        Radar Constant

        [1 values with dtype=float32]

      • radar_beam_width_h
        ()
        float32
        ...

        units :

        degrees

        long_name :

        Horizontal Beam Width

        [1 values with dtype=float32]

      • radar_receiver_bandwidth
        ()
        float32
        ...

        units :

        hertz

        long_name :

        Band Width

        [1 values with dtype=float32]

      • filterDop
        ()
        int16
        ...

        long_name :

        Ground clutter filter information

        [1 values with dtype=int16]

      • dwellTime
        ()
        float32
        ...

        units :

        millisecond

        long_name :

        Dwell time of pulses

        [1 values with dtype=float32]

      • calI0
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Intercept of fit line with Noise Level

        [1 values with dtype=float32]

      • calNoise
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Calibration Noise

        [1 values with dtype=float32]

      • altitude_agl
        ()
        float32
        ...

        units :

        meter

        long_name :

        Radar Site,Ground Height

        [1 values with dtype=float32]

      • meltHeight
        ()
        float32
        ...

        units :

        meter

        long_name :

        Melting Layer Height

        [1 values with dtype=float32]

      • logNoise
        ()
        float32
        ...

        units :

        long_name :

        LOG Channel Noise

        [1 values with dtype=float32]

      • linNoise
        ()
        float32
        ...

        units :

        long_name :

        Linearized LOG Power Noise

        [1 values with dtype=float32]

      • inphaseOffset
        ()
        float32
        ...

        units :

        long_name :

        Inphase Offset

        [1 values with dtype=float32]

      • quadratureOffset
        ()
        float32
        ...

        units :

        long_name :

        Quadrature Offset

        [1 values with dtype=float32]

      • logSlope
        ()
        float32
        ...

        units :

        long_name :

        LOG conversion Slope

        [1 values with dtype=float32]

      • logFilter
        ()
        int32
        ...

        units :

        long_name :

        Log filter used on first bin

        [1 values with dtype=int32]

      • filterPntClt
        ()
        int32
        ...

        units :

        long_name :

        Side skip in low 4 bits, 0=feature off

        [1 values with dtype=int32]

      • filterThreshold
        ()
        float32
        ...

        units :

        dB

        long_name :

        Point Clutter Threshold

        [1 values with dtype=float32]

      • SQIThresh
        ()
        float32
        ...

        long_name :

        Signal Quality Index Threshold

        [1 values with dtype=float32]

      • LOGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        LOG noise threshold

        [1 values with dtype=float32]

      • SIGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Signal power threshold

        [1 values with dtype=float32]

      • CSRThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Clutter Correction threshold

        [1 values with dtype=float32]

      • DBTThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

        [1 values with dtype=int32]

      • DBZThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Corrected Z flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • VELThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Velocity flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • WIDThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Spectral Width flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • radar_beam_width_v
        ()
        float32
        ...

        units :

        degree

        long_name :

        Vertical Beam Width

        [1 values with dtype=float32]

      • DBTH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Total power H (uncorrected reflectivity)

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • DBZH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Equivalent reflectivity factor H

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • VRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Radial velocity of scatterers away from instrument H

        polarization :

        Horizontal

        standard_name :

        radial_velocity_of_scatterers_away_from_instrument_h

        [359640 values with dtype=float32]

      • WRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Doppler spectrum width H

        polarization :

        Horizontal

        standard_name :

        radar_doppler_spectrum_width_h

        [359640 values with dtype=float32]

      • ZDR
        (azimuth, range)
        float32
        ...

        units :

        dB

        long_name :

        Log differential reflectivity H/V

        polarization :

        Horizontal and Vertical

        standard_name :

        radar_differential_reflectivity_hv

        [359640 values with dtype=float32]

      • HCLASS
        (azimuth, range)
        float32
        ...

        units :

        long_name :

        Hydrological Classification

        polarization :

        Horizontal and Vertical

        [359640 values with dtype=float32]

      • sweep_mode
        ()
        <U20
        'azimuth_surveillance'

        array('azimuth_surveillance', dtype='<U20')

      • scan_type
        ()
        <U3
        'ppi'

        array('ppi', dtype='<U3')

      • follow_mode
        ()
        <U7
        'not_set'

        array('not_set', dtype='<U7')

      • prt
        (azimuth)
        float32
        0.001667 0.001667 ... 0.001667

        units :

        seconds

        long_name :

        Pulse repetition time

        array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

      • prt_ratio
        (azimuth)
        float32
        1.333 1.333 1.333 ... 1.333 1.333

        long_name :

        PRT ratio (high/low)

        array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

      • prt_mode
        ()
        <U9
        'staggered'

        array('staggered', dtype='<U9')

      • scan_rate
        (azimuth)
        float32
        10.18 10.18 10.18 ... 10.18 10.18

        units :

        degrees/s

        long_name :

        Antenna scan rate

        array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

      • n_samples
        (azimuth)
        int32
        42 42 42 42 42 ... 42 42 42 42 42

        long_name :

        Maximum number of samples used to compute moments

        array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

      • pulse_width
        (azimuth)
        float32
        1e-06 1e-06 1e-06 ... 1e-06 1e-06

        units :

        seconds

        long_name :

        Pulse width

        array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

      • sweep_fixed_angle
        ()
        float64
        0.4999

        long_name :

        Fixed angle of sweep

        units :

        degrees

        array(0.49987793)

      • sweep_number
        ()
        int64
        0

        array(0)

      • rays_angle_resolution
        ()
        float64
        1.0

        long_name :

        Angular resolution between rays

        units :

        degrees

        array(1.)

    /vcp_00/sweep_1(52)

    • Dimensions:
      • sweep: 10
      • azimuth: 360
      • range: 999
      • frequency: 1
    • Coordinates: (5)
      • azimuth
        (azimuth)
        float32
        0.1703 1.027 2.164 ... 358.2 359.0

        units :

        degrees

        standard_name :

        sensor_to_target_azimuth_angle

        long_name :

        Azimuth angle from true north

        axis :

        radial_azimuth_coordinate

        array([1.702881e-01, 1.027222e+00, 2.164307e+00, ..., 3.570172e+02,3.581653e+02, 3.590222e+02], shape=(360,), dtype=float32)

      • elevation
        (azimuth)
        float32
        ...

        units :

        degrees

        standard_name :

        sensor_to_target_elevation_angle

        long_name :

        Elevation angle from horizontal plane

        axis :

        radial_elevation_coordinate

        [360 values with dtype=float32]

      • time
        (azimuth)
        datetime64[ns]
        2022-08-22T13:53:38 ... 2022-08-...

        long_name :

        Time of radial

        array(['2022-08-22T13:53:38.000000000', '2022-08-22T13:53:38.000000000','2022-08-22T13:53:38.000000000', ..., '2022-08-22T13:53:37.000000000','2022-08-22T13:53:37.000000000', '2022-08-22T13:53:37.000000000'],shape=(360,), dtype='datetime64[ns]')

      • range
        (range)
        float64
        300.0 550.0 ... 2.496e+05 2.498e+05

        units :

        meters

        standard_name :

        projection_range_coordinate

        long_name :

        range_to_measurement_volume

        axis :

        radial_range_coordinate

        spacing_is_constant :

        true

        meters_to_center_of_first_gate :

        300.0

        meters_between_gates :

        250.0

        array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

      • frequency
        (frequency)
        float32
        5.625e+09

        units :

        s-1

        standard_name :

        radiation_frequency

        long_name :

        Radiation frequency

        array([5.624624e+09], dtype=float32)

    • Data variables: (47)
      • nyquist_velocity
        ()
        float32
        ...

        units :

        meter/second

        long_name :

        Nyquist velocity

        [1 values with dtype=float32]

      • unambiguous_range
        ()
        float32
        ...

        units :

        kilometer

        long_name :

        Unambiguous range

        [1 values with dtype=float32]

      • calibConst
        ()
        float32
        ...

        units :

        dB

        long_name :

        System gain calibration constant

        [1 values with dtype=float32]

      • radarConst
        ()
        float32
        ...

        units :

        long_name :

        Radar Constant

        [1 values with dtype=float32]

      • radar_beam_width_h
        ()
        float32
        ...

        units :

        degrees

        long_name :

        Horizontal Beam Width

        [1 values with dtype=float32]

      • radar_receiver_bandwidth
        ()
        float32
        ...

        units :

        hertz

        long_name :

        Band Width

        [1 values with dtype=float32]

      • filterDop
        ()
        int16
        ...

        long_name :

        Ground clutter filter information

        [1 values with dtype=int16]

      • dwellTime
        ()
        float32
        ...

        units :

        millisecond

        long_name :

        Dwell time of pulses

        [1 values with dtype=float32]

      • calI0
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Intercept of fit line with Noise Level

        [1 values with dtype=float32]

      • calNoise
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Calibration Noise

        [1 values with dtype=float32]

      • altitude_agl
        ()
        float32
        ...

        units :

        meter

        long_name :

        Radar Site,Ground Height

        [1 values with dtype=float32]

      • meltHeight
        ()
        float32
        ...

        units :

        meter

        long_name :

        Melting Layer Height

        [1 values with dtype=float32]

      • logNoise
        ()
        float32
        ...

        units :

        long_name :

        LOG Channel Noise

        [1 values with dtype=float32]

      • linNoise
        ()
        float32
        ...

        units :

        long_name :

        Linearized LOG Power Noise

        [1 values with dtype=float32]

      • inphaseOffset
        ()
        float32
        ...

        units :

        long_name :

        Inphase Offset

        [1 values with dtype=float32]

      • quadratureOffset
        ()
        float32
        ...

        units :

        long_name :

        Quadrature Offset

        [1 values with dtype=float32]

      • logSlope
        ()
        float32
        ...

        units :

        long_name :

        LOG conversion Slope

        [1 values with dtype=float32]

      • logFilter
        ()
        int32
        ...

        units :

        long_name :

        Log filter used on first bin

        [1 values with dtype=int32]

      • filterPntClt
        ()
        int32
        ...

        units :

        long_name :

        Side skip in low 4 bits, 0=feature off

        [1 values with dtype=int32]

      • filterThreshold
        ()
        float32
        ...

        units :

        dB

        long_name :

        Point Clutter Threshold

        [1 values with dtype=float32]

      • SQIThresh
        ()
        float32
        ...

        long_name :

        Signal Quality Index Threshold

        [1 values with dtype=float32]

      • LOGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        LOG noise threshold

        [1 values with dtype=float32]

      • SIGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Signal power threshold

        [1 values with dtype=float32]

      • CSRThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Clutter Correction threshold

        [1 values with dtype=float32]

      • DBTThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

        [1 values with dtype=int32]

      • DBZThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Corrected Z flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • VELThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Velocity flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • WIDThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Spectral Width flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • radar_beam_width_v
        ()
        float32
        ...

        units :

        degree

        long_name :

        Vertical Beam Width

        [1 values with dtype=float32]

      • DBTH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Total power H (uncorrected reflectivity)

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • DBZH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Equivalent reflectivity factor H

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • VRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Radial velocity of scatterers away from instrument H

        polarization :

        Horizontal

        standard_name :

        radial_velocity_of_scatterers_away_from_instrument_h

        [359640 values with dtype=float32]

      • WRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Doppler spectrum width H

        polarization :

        Horizontal

        standard_name :

        radar_doppler_spectrum_width_h

        [359640 values with dtype=float32]

      • ZDR
        (azimuth, range)
        float32
        ...

        units :

        dB

        long_name :

        Log differential reflectivity H/V

        polarization :

        Horizontal and Vertical

        standard_name :

        radar_differential_reflectivity_hv

        [359640 values with dtype=float32]

      • HCLASS
        (azimuth, range)
        float32
        ...

        units :

        long_name :

        Hydrological Classification

        polarization :

        Horizontal and Vertical

        [359640 values with dtype=float32]

      • sweep_mode
        ()
        <U20
        'azimuth_surveillance'

        array('azimuth_surveillance', dtype='<U20')

      • scan_type
        ()
        <U3
        'ppi'

        array('ppi', dtype='<U3')

      • follow_mode
        ()
        <U7
        'not_set'

        array('not_set', dtype='<U7')

      • prt
        (azimuth)
        float32
        0.001667 0.001667 ... 0.001667

        units :

        seconds

        long_name :

        Pulse repetition time

        array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

      • prt_ratio
        (azimuth)
        float32
        1.333 1.333 1.333 ... 1.333 1.333

        long_name :

        PRT ratio (high/low)

        array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

      • prt_mode
        ()
        <U9
        'staggered'

        array('staggered', dtype='<U9')

      • scan_rate
        (azimuth)
        float32
        10.18 10.18 10.18 ... 10.18 10.18

        units :

        degrees/s

        long_name :

        Antenna scan rate

        array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

      • n_samples
        (azimuth)
        int32
        42 42 42 42 42 ... 42 42 42 42 42

        long_name :

        Maximum number of samples used to compute moments

        array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

      • pulse_width
        (azimuth)
        float32
        1e-06 1e-06 1e-06 ... 1e-06 1e-06

        units :

        seconds

        long_name :

        Pulse width

        array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

      • sweep_fixed_angle
        ()
        float64
        0.9998

        long_name :

        Fixed angle of sweep

        units :

        degrees

        array(0.99975586)

      • sweep_number
        ()
        int64
        1

        array(1)

      • rays_angle_resolution
        ()
        float64
        1.0

        long_name :

        Angular resolution between rays

        units :

        degrees

        array(1.)

    /vcp_00/sweep_2(52)

    • Dimensions:
      • sweep: 10
      • azimuth: 360
      • range: 999
      • frequency: 1
    • Coordinates: (5)
      • azimuth
        (azimuth)
        float32
        0.1428 1.027 2.17 ... 358.2 359.0

        units :

        degrees

        standard_name :

        sensor_to_target_azimuth_angle

        long_name :

        Azimuth angle from true north

        axis :

        radial_azimuth_coordinate

        array([1.428223e-01, 1.027222e+00, 2.169800e+00, ..., 3.570282e+02,3.581653e+02, 3.590222e+02], shape=(360,), dtype=float32)

      • elevation
        (azimuth)
        float32
        ...

        units :

        degrees

        standard_name :

        sensor_to_target_elevation_angle

        long_name :

        Elevation angle from horizontal plane

        axis :

        radial_elevation_coordinate

        [360 values with dtype=float32]

      • time
        (azimuth)
        datetime64[ns]
        2022-08-22T13:54:14 ... 2022-08-...

        long_name :

        Time of radial

        array(['2022-08-22T13:54:14.000000000', '2022-08-22T13:54:14.000000000','2022-08-22T13:54:14.000000000', ..., '2022-08-22T13:54:13.000000000','2022-08-22T13:54:13.000000000', '2022-08-22T13:54:13.000000000'],shape=(360,), dtype='datetime64[ns]')

      • range
        (range)
        float64
        300.0 550.0 ... 2.496e+05 2.498e+05

        units :

        meters

        standard_name :

        projection_range_coordinate

        long_name :

        range_to_measurement_volume

        axis :

        radial_range_coordinate

        spacing_is_constant :

        true

        meters_to_center_of_first_gate :

        300.0

        meters_between_gates :

        250.0

        array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

      • frequency
        (frequency)
        float32
        5.625e+09

        units :

        s-1

        standard_name :

        radiation_frequency

        long_name :

        Radiation frequency

        array([5.624624e+09], dtype=float32)

    • Data variables: (47)
      • nyquist_velocity
        ()
        float32
        ...

        units :

        meter/second

        long_name :

        Nyquist velocity

        [1 values with dtype=float32]

      • unambiguous_range
        ()
        float32
        ...

        units :

        kilometer

        long_name :

        Unambiguous range

        [1 values with dtype=float32]

      • calibConst
        ()
        float32
        ...

        units :

        dB

        long_name :

        System gain calibration constant

        [1 values with dtype=float32]

      • radarConst
        ()
        float32
        ...

        units :

        long_name :

        Radar Constant

        [1 values with dtype=float32]

      • radar_beam_width_h
        ()
        float32
        ...

        units :

        degrees

        long_name :

        Horizontal Beam Width

        [1 values with dtype=float32]

      • radar_receiver_bandwidth
        ()
        float32
        ...

        units :

        hertz

        long_name :

        Band Width

        [1 values with dtype=float32]

      • filterDop
        ()
        int16
        ...

        long_name :

        Ground clutter filter information

        [1 values with dtype=int16]

      • dwellTime
        ()
        float32
        ...

        units :

        millisecond

        long_name :

        Dwell time of pulses

        [1 values with dtype=float32]

      • calI0
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Intercept of fit line with Noise Level

        [1 values with dtype=float32]

      • calNoise
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Calibration Noise

        [1 values with dtype=float32]

      • altitude_agl
        ()
        float32
        ...

        units :

        meter

        long_name :

        Radar Site,Ground Height

        [1 values with dtype=float32]

      • meltHeight
        ()
        float32
        ...

        units :

        meter

        long_name :

        Melting Layer Height

        [1 values with dtype=float32]

      • logNoise
        ()
        float32
        ...

        units :

        long_name :

        LOG Channel Noise

        [1 values with dtype=float32]

      • linNoise
        ()
        float32
        ...

        units :

        long_name :

        Linearized LOG Power Noise

        [1 values with dtype=float32]

      • inphaseOffset
        ()
        float32
        ...

        units :

        long_name :

        Inphase Offset

        [1 values with dtype=float32]

      • quadratureOffset
        ()
        float32
        ...

        units :

        long_name :

        Quadrature Offset

        [1 values with dtype=float32]

      • logSlope
        ()
        float32
        ...

        units :

        long_name :

        LOG conversion Slope

        [1 values with dtype=float32]

      • logFilter
        ()
        int32
        ...

        units :

        long_name :

        Log filter used on first bin

        [1 values with dtype=int32]

      • filterPntClt
        ()
        int32
        ...

        units :

        long_name :

        Side skip in low 4 bits, 0=feature off

        [1 values with dtype=int32]

      • filterThreshold
        ()
        float32
        ...

        units :

        dB

        long_name :

        Point Clutter Threshold

        [1 values with dtype=float32]

      • SQIThresh
        ()
        float32
        ...

        long_name :

        Signal Quality Index Threshold

        [1 values with dtype=float32]

      • LOGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        LOG noise threshold

        [1 values with dtype=float32]

      • SIGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Signal power threshold

        [1 values with dtype=float32]

      • CSRThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Clutter Correction threshold

        [1 values with dtype=float32]

      • DBTThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

        [1 values with dtype=int32]

      • DBZThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Corrected Z flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • VELThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Velocity flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • WIDThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Spectral Width flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • radar_beam_width_v
        ()
        float32
        ...

        units :

        degree

        long_name :

        Vertical Beam Width

        [1 values with dtype=float32]

      • DBTH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Total power H (uncorrected reflectivity)

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • DBZH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Equivalent reflectivity factor H

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • VRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Radial velocity of scatterers away from instrument H

        polarization :

        Horizontal

        standard_name :

        radial_velocity_of_scatterers_away_from_instrument_h

        [359640 values with dtype=float32]

      • WRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Doppler spectrum width H

        polarization :

        Horizontal

        standard_name :

        radar_doppler_spectrum_width_h

        [359640 values with dtype=float32]

      • ZDR
        (azimuth, range)
        float32
        ...

        units :

        dB

        long_name :

        Log differential reflectivity H/V

        polarization :

        Horizontal and Vertical

        standard_name :

        radar_differential_reflectivity_hv

        [359640 values with dtype=float32]

      • HCLASS
        (azimuth, range)
        float32
        ...

        units :

        long_name :

        Hydrological Classification

        polarization :

        Horizontal and Vertical

        [359640 values with dtype=float32]

      • sweep_mode
        ()
        <U20
        'azimuth_surveillance'

        array('azimuth_surveillance', dtype='<U20')

      • scan_type
        ()
        <U3
        'ppi'

        array('ppi', dtype='<U3')

      • follow_mode
        ()
        <U7
        'not_set'

        array('not_set', dtype='<U7')

      • prt
        (azimuth)
        float32
        0.001667 0.001667 ... 0.001667

        units :

        seconds

        long_name :

        Pulse repetition time

        array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

      • prt_ratio
        (azimuth)
        float32
        1.333 1.333 1.333 ... 1.333 1.333

        long_name :

        PRT ratio (high/low)

        array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

      • prt_mode
        ()
        <U9
        'staggered'

        array('staggered', dtype='<U9')

      • scan_rate
        (azimuth)
        float32
        10.18 10.18 10.18 ... 10.18 10.18

        units :

        degrees/s

        long_name :

        Antenna scan rate

        array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

      • n_samples
        (azimuth)
        int32
        42 42 42 42 42 ... 42 42 42 42 42

        long_name :

        Maximum number of samples used to compute moments

        array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

      • pulse_width
        (azimuth)
        float32
        1e-06 1e-06 1e-06 ... 1e-06 1e-06

        units :

        seconds

        long_name :

        Pulse width

        array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

      • sweep_fixed_angle
        ()
        float64
        2.0

        long_name :

        Fixed angle of sweep

        units :

        degrees

        array(1.99951172)

      • sweep_number
        ()
        int64
        2

        array(2)

      • rays_angle_resolution
        ()
        float64
        1.0

        long_name :

        Angular resolution between rays

        units :

        degrees

        array(1.)

    /vcp_00/sweep_3(52)

    • Dimensions:
      • sweep: 10
      • azimuth: 360
      • range: 999
      • frequency: 1
    • Coordinates: (5)
      • azimuth
        (azimuth)
        float32
        0.1483 1.005 2.159 ... 358.2 359.0

        units :

        degrees

        standard_name :

        sensor_to_target_azimuth_angle

        long_name :

        Azimuth angle from true north

        axis :

        radial_azimuth_coordinate

        array([1.483154e-01, 1.005249e+00, 2.158813e+00, ..., 3.570447e+02,3.581653e+02, 3.590057e+02], shape=(360,), dtype=float32)

      • elevation
        (azimuth)
        float32
        ...

        units :

        degrees

        standard_name :

        sensor_to_target_elevation_angle

        long_name :

        Elevation angle from horizontal plane

        axis :

        radial_elevation_coordinate

        [360 values with dtype=float32]

      • time
        (azimuth)
        datetime64[ns]
        2022-08-22T13:54:49 ... 2022-08-...

        long_name :

        Time of radial

        array(['2022-08-22T13:54:49.000000000', '2022-08-22T13:54:49.000000000','2022-08-22T13:54:49.000000000', ..., '2022-08-22T13:54:48.000000000','2022-08-22T13:54:48.000000000', '2022-08-22T13:54:48.000000000'],shape=(360,), dtype='datetime64[ns]')

      • range
        (range)
        float64
        300.0 550.0 ... 2.496e+05 2.498e+05

        units :

        meters

        standard_name :

        projection_range_coordinate

        long_name :

        range_to_measurement_volume

        axis :

        radial_range_coordinate

        spacing_is_constant :

        true

        meters_to_center_of_first_gate :

        300.0

        meters_between_gates :

        250.0

        array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

      • frequency
        (frequency)
        float32
        5.625e+09

        units :

        s-1

        standard_name :

        radiation_frequency

        long_name :

        Radiation frequency

        array([5.624624e+09], dtype=float32)

    • Data variables: (47)
      • nyquist_velocity
        ()
        float32
        ...

        units :

        meter/second

        long_name :

        Nyquist velocity

        [1 values with dtype=float32]

      • unambiguous_range
        ()
        float32
        ...

        units :

        kilometer

        long_name :

        Unambiguous range

        [1 values with dtype=float32]

      • calibConst
        ()
        float32
        ...

        units :

        dB

        long_name :

        System gain calibration constant

        [1 values with dtype=float32]

      • radarConst
        ()
        float32
        ...

        units :

        long_name :

        Radar Constant

        [1 values with dtype=float32]

      • radar_beam_width_h
        ()
        float32
        ...

        units :

        degrees

        long_name :

        Horizontal Beam Width

        [1 values with dtype=float32]

      • radar_receiver_bandwidth
        ()
        float32
        ...

        units :

        hertz

        long_name :

        Band Width

        [1 values with dtype=float32]

      • filterDop
        ()
        int16
        ...

        long_name :

        Ground clutter filter information

        [1 values with dtype=int16]

      • dwellTime
        ()
        float32
        ...

        units :

        millisecond

        long_name :

        Dwell time of pulses

        [1 values with dtype=float32]

      • calI0
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Intercept of fit line with Noise Level

        [1 values with dtype=float32]

      • calNoise
        ()
        float32
        ...

        units :

        dBm

        long_name :

        Calibration Noise

        [1 values with dtype=float32]

      • altitude_agl
        ()
        float32
        ...

        units :

        meter

        long_name :

        Radar Site,Ground Height

        [1 values with dtype=float32]

      • meltHeight
        ()
        float32
        ...

        units :

        meter

        long_name :

        Melting Layer Height

        [1 values with dtype=float32]

      • logNoise
        ()
        float32
        ...

        units :

        long_name :

        LOG Channel Noise

        [1 values with dtype=float32]

      • linNoise
        ()
        float32
        ...

        units :

        long_name :

        Linearized LOG Power Noise

        [1 values with dtype=float32]

      • inphaseOffset
        ()
        float32
        ...

        units :

        long_name :

        Inphase Offset

        [1 values with dtype=float32]

      • quadratureOffset
        ()
        float32
        ...

        units :

        long_name :

        Quadrature Offset

        [1 values with dtype=float32]

      • logSlope
        ()
        float32
        ...

        units :

        long_name :

        LOG conversion Slope

        [1 values with dtype=float32]

      • logFilter
        ()
        int32
        ...

        units :

        long_name :

        Log filter used on first bin

        [1 values with dtype=int32]

      • filterPntClt
        ()
        int32
        ...

        units :

        long_name :

        Side skip in low 4 bits, 0=feature off

        [1 values with dtype=int32]

      • filterThreshold
        ()
        float32
        ...

        units :

        dB

        long_name :

        Point Clutter Threshold

        [1 values with dtype=float32]

      • SQIThresh
        ()
        float32
        ...

        long_name :

        Signal Quality Index Threshold

        [1 values with dtype=float32]

      • LOGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        LOG noise threshold

        [1 values with dtype=float32]

      • SIGThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Signal power threshold

        [1 values with dtype=float32]

      • CSRThresh
        ()
        float32
        ...

        units :

        dB

        long_name :

        Clutter Correction threshold

        [1 values with dtype=float32]

      • DBTThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        UnCorrected Z flags.(Bit 1 for LOG, 2 for SIG, 3 for SQI, 4 for CSR)

        [1 values with dtype=int32]

      • DBZThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Corrected Z flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • VELThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Velocity flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • WIDThreshFlag
        ()
        int32
        ...

        units :

        long_name :

        Spectral Width flags. see also DBTThreshFlag.

        [1 values with dtype=int32]

      • radar_beam_width_v
        ()
        float32
        ...

        units :

        degree

        long_name :

        Vertical Beam Width

        [1 values with dtype=float32]

      • DBTH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Total power H (uncorrected reflectivity)

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • DBZH
        (azimuth, range)
        float32
        ...

        units :

        dBZ

        long_name :

        Equivalent reflectivity factor H

        polarization :

        Horizontal

        standard_name :

        radar_equivalent_reflectivity_factor_h

        [359640 values with dtype=float32]

      • VRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Radial velocity of scatterers away from instrument H

        polarization :

        Horizontal

        standard_name :

        radial_velocity_of_scatterers_away_from_instrument_h

        [359640 values with dtype=float32]

      • WRADH
        (azimuth, range)
        float32
        ...

        units :

        meters per seconds

        long_name :

        Doppler spectrum width H

        polarization :

        Horizontal

        standard_name :

        radar_doppler_spectrum_width_h

        [359640 values with dtype=float32]

      • ZDR
        (azimuth, range)
        float32
        ...

        units :

        dB

        long_name :

        Log differential reflectivity H/V

        polarization :

        Horizontal and Vertical

        standard_name :

        radar_differential_reflectivity_hv

        [359640 values with dtype=float32]

      • HCLASS
        (azimuth, range)
        float32
        ...

        units :

        long_name :

        Hydrological Classification

        polarization :

        Horizontal and Vertical

        [359640 values with dtype=float32]

      • sweep_mode
        ()
        <U20
        'azimuth_surveillance'

        array('azimuth_surveillance', dtype='<U20')

      • scan_type
        ()
        <U3
        'ppi'

        array('ppi', dtype='<U3')

      • follow_mode
        ()
        <U7
        'not_set'

        array('not_set', dtype='<U7')

      • prt
        (azimuth)
        float32
        0.001667 0.001667 ... 0.001667

        units :

        seconds

        long_name :

        Pulse repetition time

        array([0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,...0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667,0.00166667, 0.00166667, 0.00166667, 0.00166667, 0.00166667],dtype=float32)

      • prt_ratio
        (azimuth)
        float32
        1.333 1.333 1.333 ... 1.333 1.333

        long_name :

        PRT ratio (high/low)

        array([1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,...1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334,1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334, 1.3333334],dtype=float32)

      • prt_mode
        ()
        <U9
        'staggered'

        array('staggered', dtype='<U9')

      • scan_rate
        (azimuth)
        float32
        10.18 10.18 10.18 ... 10.18 10.18

        units :

        degrees/s

        long_name :

        Antenna scan rate

        array([10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,...10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833,10.178833, 10.178833, 10.178833, 10.178833, 10.178833, 10.178833],dtype=float32)

      • n_samples
        (azimuth)
        int32
        42 42 42 42 42 ... 42 42 42 42 42

        long_name :

        Maximum number of samples used to compute moments

        array([42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42, 42,42, 42, 42], dtype=int32)

      • pulse_width
        (azimuth)
        float32
        1e-06 1e-06 1e-06 ... 1e-06 1e-06

        units :

        seconds

        long_name :

        Pulse width

        array([1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,...1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06,1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06, 1.e-06],dtype=float32)

      • sweep_fixed_angle
        ()
        float64
        2.999

        long_name :

        Fixed angle of sweep

        units :

        degrees

        array(2.99926758)

      • sweep_number
        ()
        int64
        3

        array(3)

      • rays_angle_resolution
        ()
        float64
        1.0

        long_name :

        Angular resolution between rays

        units :

        degrees

        array(1.)

    /vcp_00/sweep_4(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_00/sweep_5(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_00/sweep_6(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_00/sweep_7(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_00/sweep_8(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_00/sweep_9(52)

    • Too many items to display (display_max_html_elements exceeded)
  • Dimensions:
    • sweep: 10
  • Coordinates: (3)
    • altitude
      ()
      float32
      ...

      units :

      meter

      long_name :

      Altitude of site above mean sea level

      [1 values with dtype=float32]

    • latitude
      ()
      float32
      ...

      units :

      degrees_north

      long_name :

      Latitude of site

      [1 values with dtype=float32]

    • longitude
      ()
      float32
      ...

      units :

      degrees_east

      long_name :

      Longitude of site

      [1 values with dtype=float32]

  • Data variables: (7)
    • volume_number
      ()
      int64
      0

      array(0)

    • platform_type
      ()
      <U5
      'fixed'

      array('fixed', dtype='<U5')

    • instrument_type
      ()
      <U5
      'radar'

      array('radar', dtype='<U5')

    • time_coverage_start
      ()
      <U20
      '2022-08-22T13:52:53Z'

      array('2022-08-22T13:52:53Z', dtype='<U20')

    • time_coverage_end
      ()
      <U20
      '2022-08-22T13:58:55Z'

      array('2022-08-22T13:58:55Z', dtype='<U20')

    • sweep_group_name
      (sweep)
      <U7
      'sweep_0' 'sweep_1' ... 'sweep_9'

      array(['sweep_0', 'sweep_1', 'sweep_2', 'sweep_3', 'sweep_4', 'sweep_5','sweep_6', 'sweep_7', 'sweep_8', 'sweep_9'], dtype='<U7')

    • sweep_fixed_angle
      (sweep)
      float64
      0.4999 0.9998 2.0 ... 16.0 21.0

      array([ 0.49987793,  0.99975586,  1.99951172,  2.99926758,  4.49890137,5.99853516,  8.99780273, 12.00256348, 16.00158691, 21.00036621])

  • Attributes: (12)

    Conventions :

    CF-1.8, WMO CF-1.0, ACDD-1.3

    wmo__cf_profile :

    FM 301-XX

    version :

    2.0

    title :

    IMD radar data

    institution :

    India Meteorological Department

    references :

    source :

    IMD NetCDF

    history :

    comment :

    instrument_name :

    platform_is_mobile :

    false

    volume_number :

    0

  /vcp_01(542)

  • /vcp_01/sweep_0(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_1(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_2(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_3(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_4(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_5(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_6(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_7(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_8(52)

    • Too many items to display (display_max_html_elements exceeded)

    /vcp_01/sweep_9(52)

    • Too many items to display (display_max_html_elements exceeded)
  • Dimensions:
    • sweep: 10
  • Coordinates: (3)
    • altitude
      ()
      float32
      ...

      units :

      meter

      long_name :

      Altitude of site above mean sea level

      [1 values with dtype=float32]

    • latitude
      ()
      float32
      ...

      units :

      degrees_north

      long_name :

      Latitude of site

      [1 values with dtype=float32]

    • longitude
      ()
      float32
      ...

      units :

      degrees_east

      long_name :

      Longitude of site

      [1 values with dtype=float32]

  • Data variables: (7)
    • volume_number
      ()
      int64
      0

      array(0)

    • platform_type
      ()
      <U5
      'fixed'

      array('fixed', dtype='<U5')

    • instrument_type
      ()
      <U5
      'radar'

      array('radar', dtype='<U5')

    • time_coverage_start
      ()
      <U20
      '2022-08-22T14:02:53Z'

      array('2022-08-22T14:02:53Z', dtype='<U20')

    • time_coverage_end
      ()
      <U20
      '2022-08-22T14:08:55Z'

      array('2022-08-22T14:08:55Z', dtype='<U20')

    • sweep_group_name
      (sweep)
      <U7
      'sweep_0' 'sweep_1' ... 'sweep_9'

      array(['sweep_0', 'sweep_1', 'sweep_2', 'sweep_3', 'sweep_4', 'sweep_5','sweep_6', 'sweep_7', 'sweep_8', 'sweep_9'], dtype='<U7')

    • sweep_fixed_angle
      (sweep)
      float64
      0.4999 0.9998 2.0 ... 16.0 21.0

      array([ 0.49987793,  0.99975586,  1.99951172,  2.99926758,  4.49890137,5.99853516,  8.99780273, 12.00256348, 16.00158691, 21.00036621])

  • Attributes: (12)

    Conventions :

    CF-1.8, WMO CF-1.0, ACDD-1.3

    wmo__cf_profile :

    FM 301-XX

    version :

    2.0

    title :

    IMD radar data

    institution :

    India Meteorological Department

    references :

    source :

    IMD NetCDF

    history :

    comment :

    instrument_name :

    platform_is_mobile :

    false

    volume_number :

    0

• Attributes: (4)

  Conventions :

  Cf/Radial

  institution :

  India Meteorological Department

  source :

  IMD NetCDF

  title :

  IMD multi-volume dataset (2 volumes)

tree["vcp_00/sweep_0"].ds["DBZH"]

<xarray.DataArray 'DBZH' (azimuth: 360, range: 999)> Size: 1MB
[359640 values with dtype=float32]
Coordinates:
  * azimuth    (azimuth) float32 1kB 0.1703 1.005 2.148 ... 357.0 358.2 359.0
    elevation  (azimuth) float32 1kB ...
    time       (azimuth) datetime64[ns] 3kB 2022-08-22T13:53:02 ... 2022-08-2...
  * range      (range) float64 8kB 300.0 550.0 800.0 ... 2.496e+05 2.498e+05
Attributes:
    units:          dBZ
    long_name:      Equivalent reflectivity factor H
    polarization:   Horizontal
    standard_name:  radar_equivalent_reflectivity_factor_h

xarray.DataArray

'DBZH'

• azimuth: 360
• range: 999

• ...

  [359640 values with dtype=float32]

• Coordinates: (4)
  • azimuth
    (azimuth)
    float32
    0.1703 1.005 2.148 ... 358.2 359.0

    units :

    degrees

    standard_name :

    sensor_to_target_azimuth_angle

    long_name :

    Azimuth angle from true north

    axis :

    radial_azimuth_coordinate

    array([1.702881e-01, 1.005249e+00, 2.147827e+00, ..., 3.570117e+02,
           3.581543e+02, 3.590167e+02], shape=(360,), dtype=float32)

  • elevation
    (azimuth)
    float32
    ...

    units :

    degrees

    standard_name :

    sensor_to_target_elevation_angle

    long_name :

    Elevation angle from horizontal plane

    axis :

    radial_elevation_coordinate

    [360 values with dtype=float32]

  • time
    (azimuth)
    datetime64[ns]
    2022-08-22T13:53:02 ... 2022-08-...

    long_name :

    Time of radial

    array(['2022-08-22T13:53:02.000000000', '2022-08-22T13:53:03.000000000',
           '2022-08-22T13:53:03.000000000', ..., '2022-08-22T13:53:02.000000000',
           '2022-08-22T13:53:02.000000000', '2022-08-22T13:53:02.000000000'],
          shape=(360,), dtype='datetime64[ns]')

  • range
    (range)
    float64
    300.0 550.0 ... 2.496e+05 2.498e+05

    units :

    meters

    standard_name :

    projection_range_coordinate

    long_name :

    range_to_measurement_volume

    axis :

    radial_range_coordinate

    spacing_is_constant :

    true

    meters_to_center_of_first_gate :

    300.0

    meters_between_gates :

    250.0

    array([   300.,    550.,    800., ..., 249300., 249550., 249800.], shape=(999,))

• Attributes: (4)

  units :

  dBZ

  long_name :

  Equivalent reflectivity factor H

  polarization :

  Horizontal

  standard_name :

  radar_equivalent_reflectivity_factor_h
